Sorts shrimp and prawn by size differences
Configured by shrimp size range, hourly capacity, handling method and downstream packing plan.
Priority product for shrimp processors
Shrimp grading machine for prawn sorting and complete seafood lines.
A focused landing page for shrimp processors that need size grading, washing, cooling, dewatering and IQF freezing equipment in one project path.
Size gradingFor shrimp, prawn and similar seafood products
Shrimp export processingFits grading, cooked prawn and seafood freezing workflows
Line integrationWasher, cooler, dewatering and IQF freezer matching
Why this page exists
For shrimp processors and complete seafood lines.
Buyers looking for a shrimp grader often also need a cooked prawn line, washing equipment, cooling equipment and IQF freezing. This page connects the product to the full processing workflow.
Designed to reduce product damage during grading
Configured by shrimp size range, hourly capacity, handling method and downstream packing plan.
Can connect with washing, cooking, cooling and IQF freezing
Configured by shrimp size range, hourly capacity, handling method and downstream packing plan.
Useful for cooked prawn and seafood export processing lines
Configured by shrimp size range, hourly capacity, handling method and downstream packing plan.
HOW THE GRADER WORKS
Wash, spread and sort shrimp continuously.

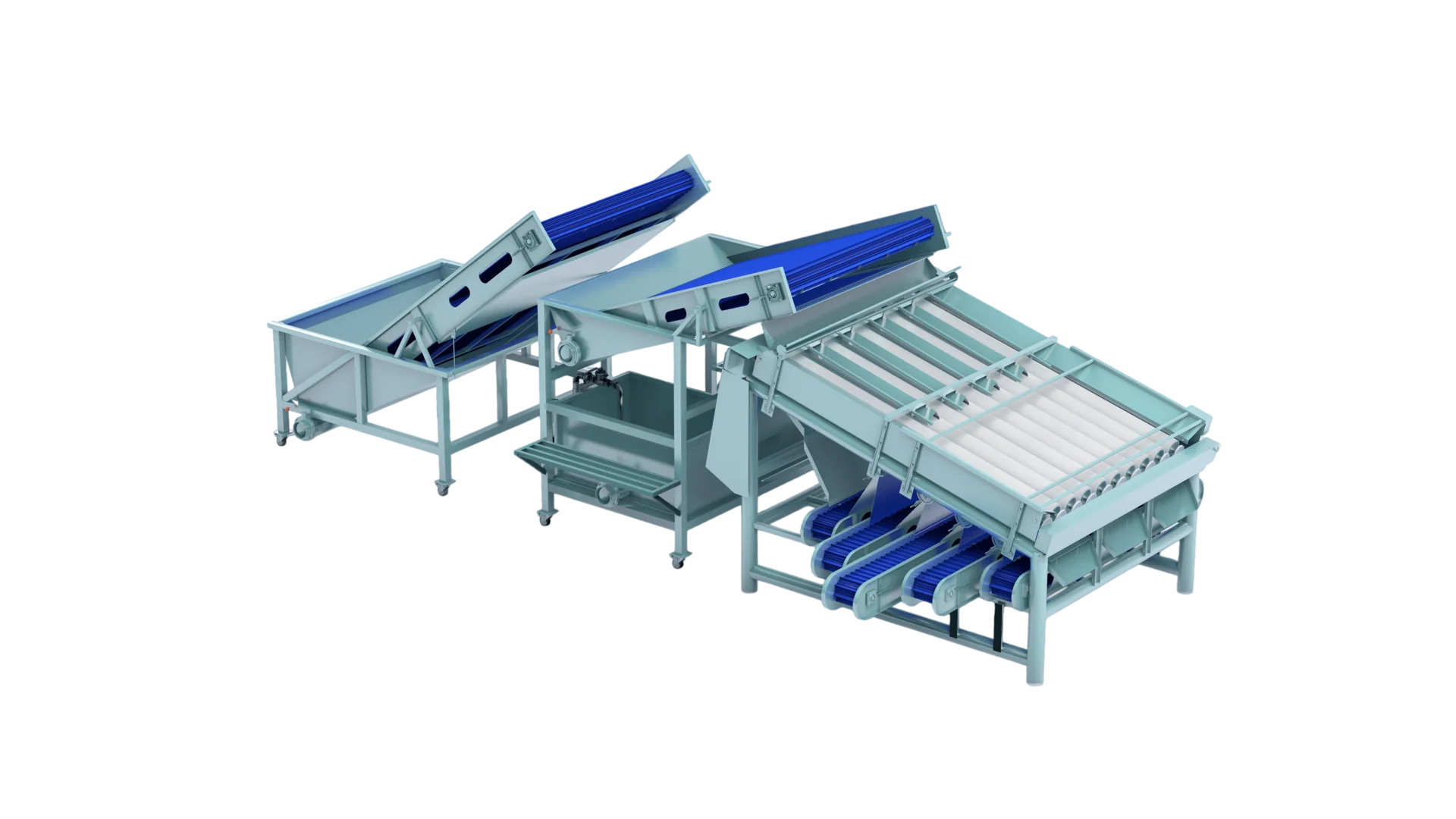

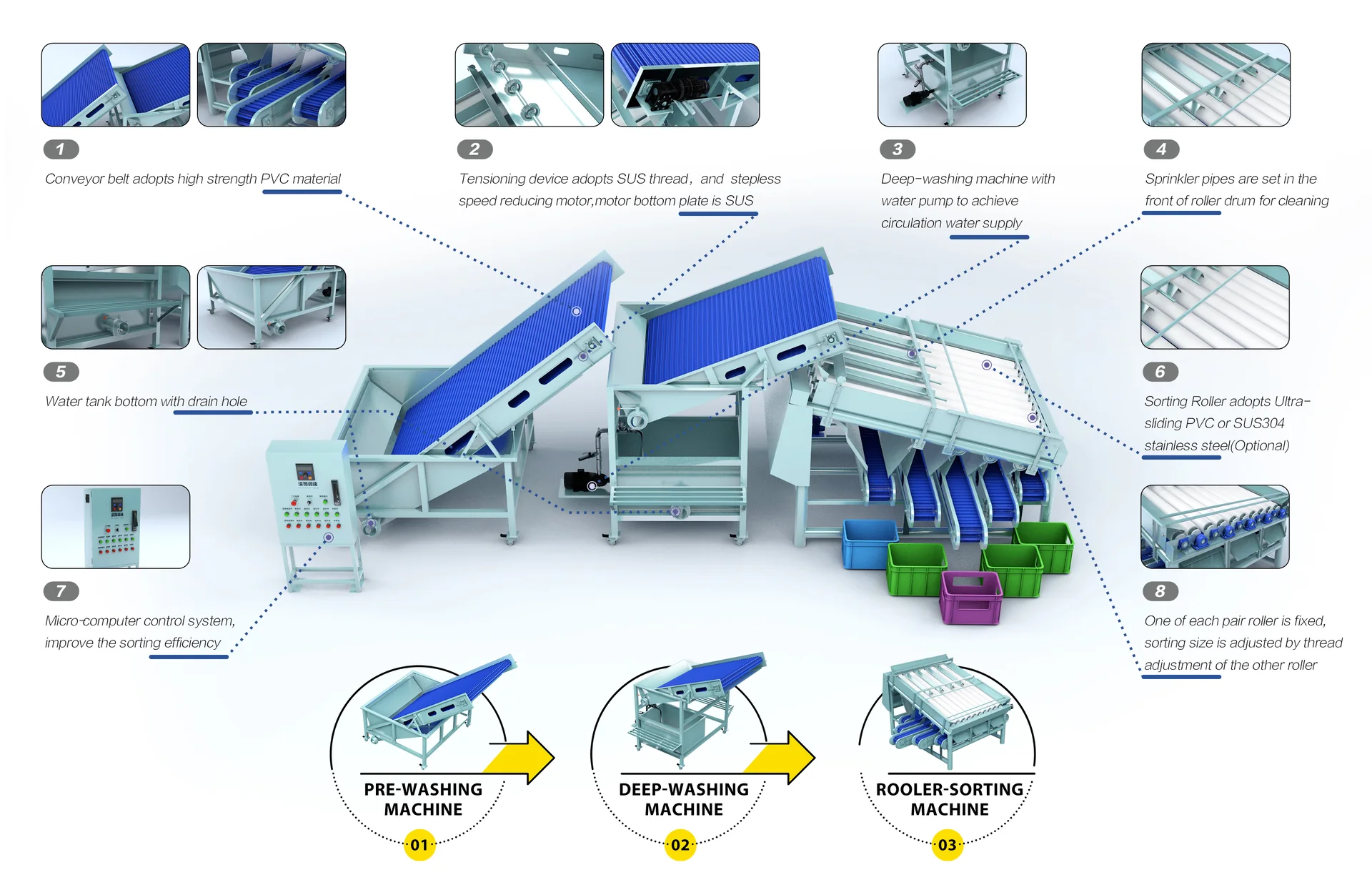

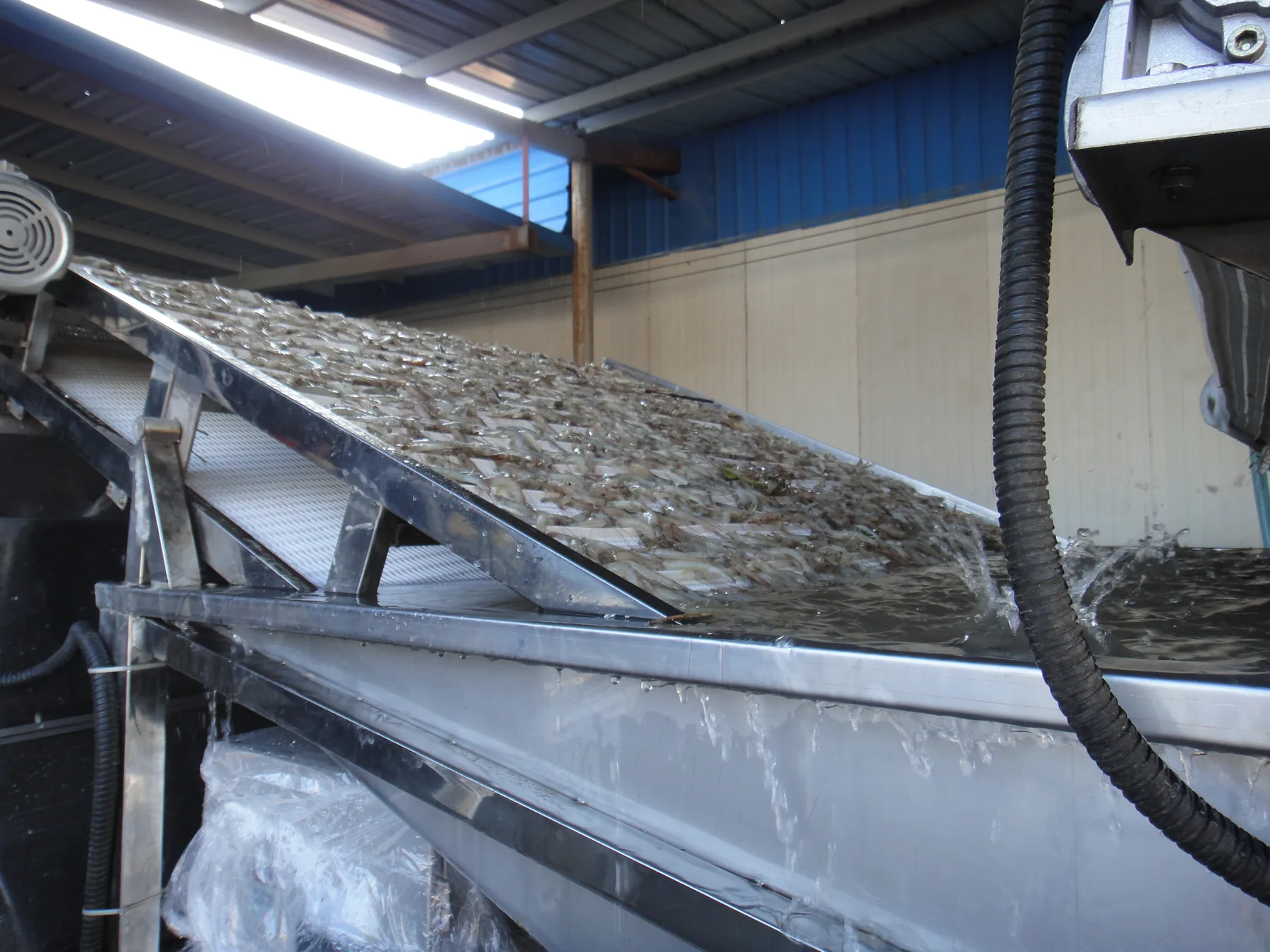

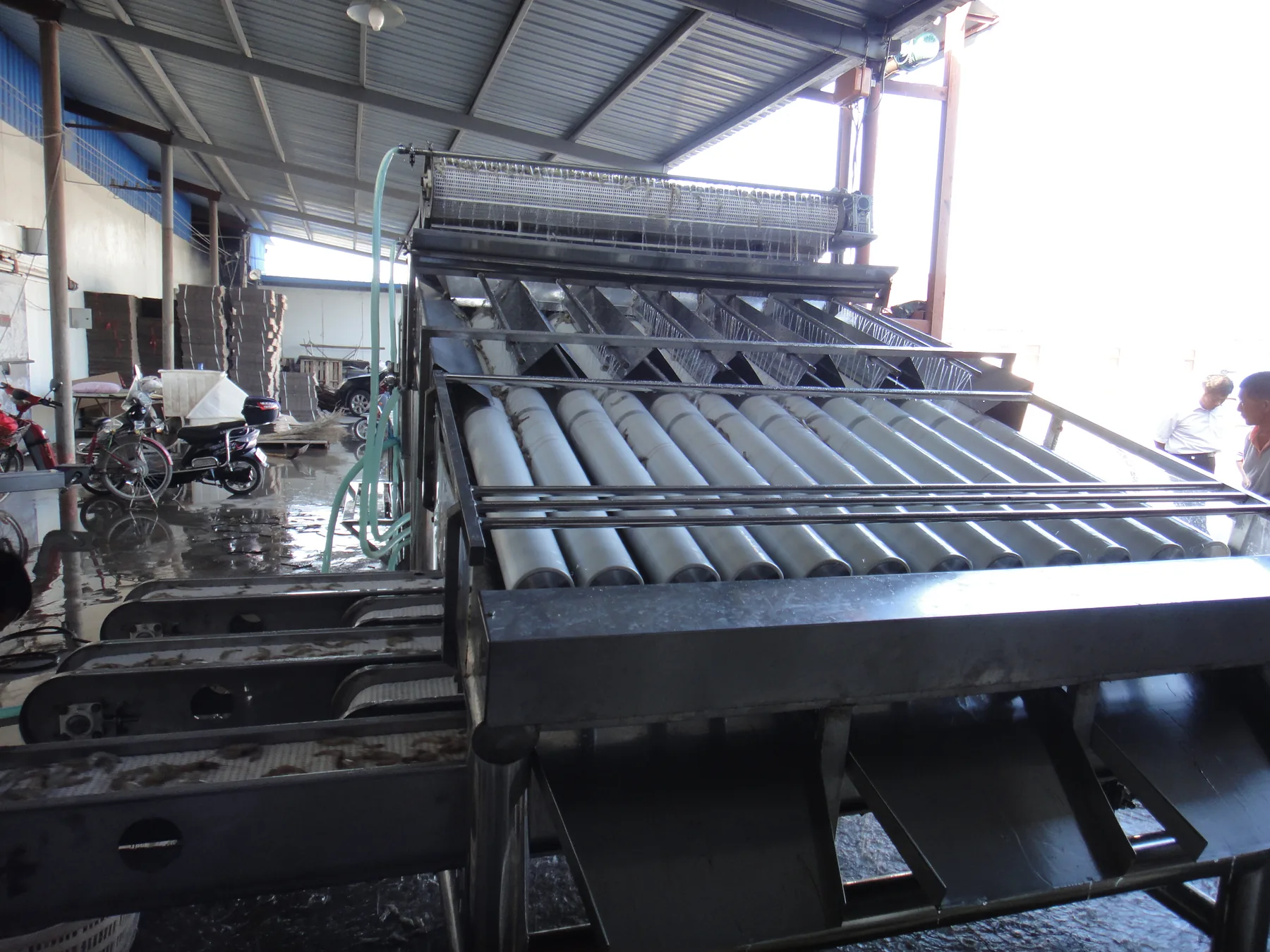

The machine combines a pre-washing section, deep-washing section and roller sorting section. Adjustable roller spacing creates grading gaps for different shrimp sizes.
SUS304 food-contact structure for easier cleaning

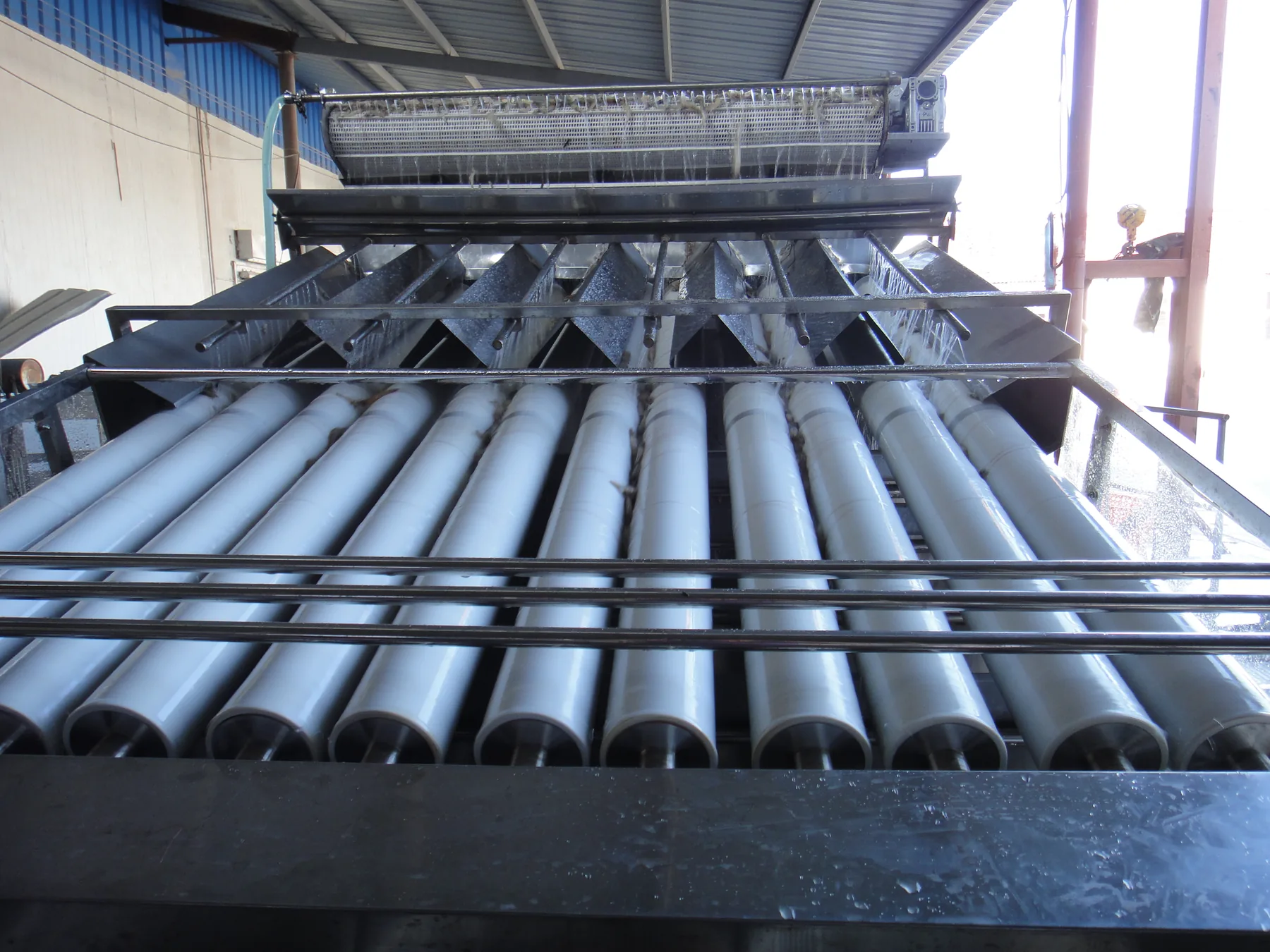

PVC or optional SUS304 grading rollers
Microcomputer control for conveyors and rollers

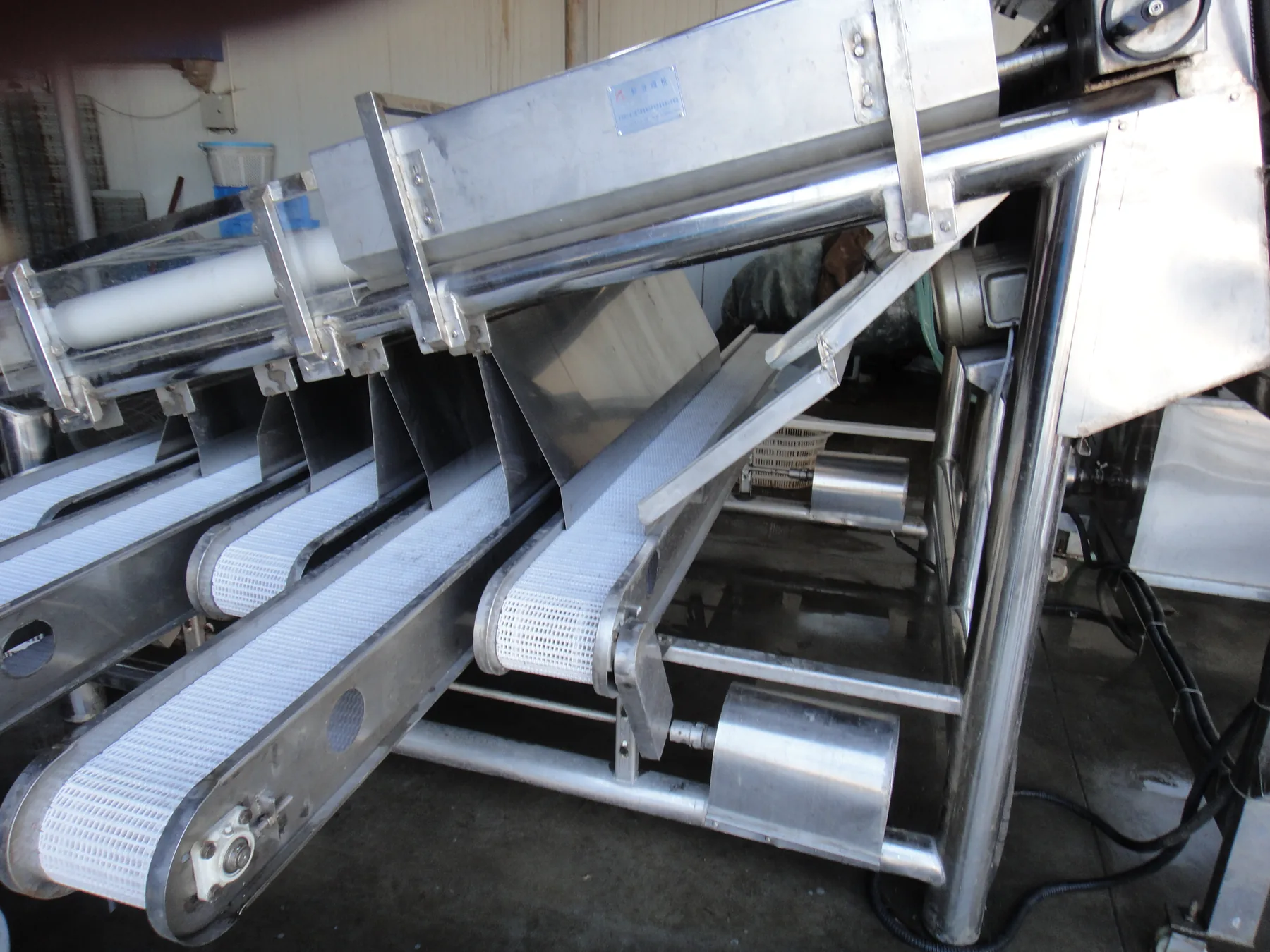

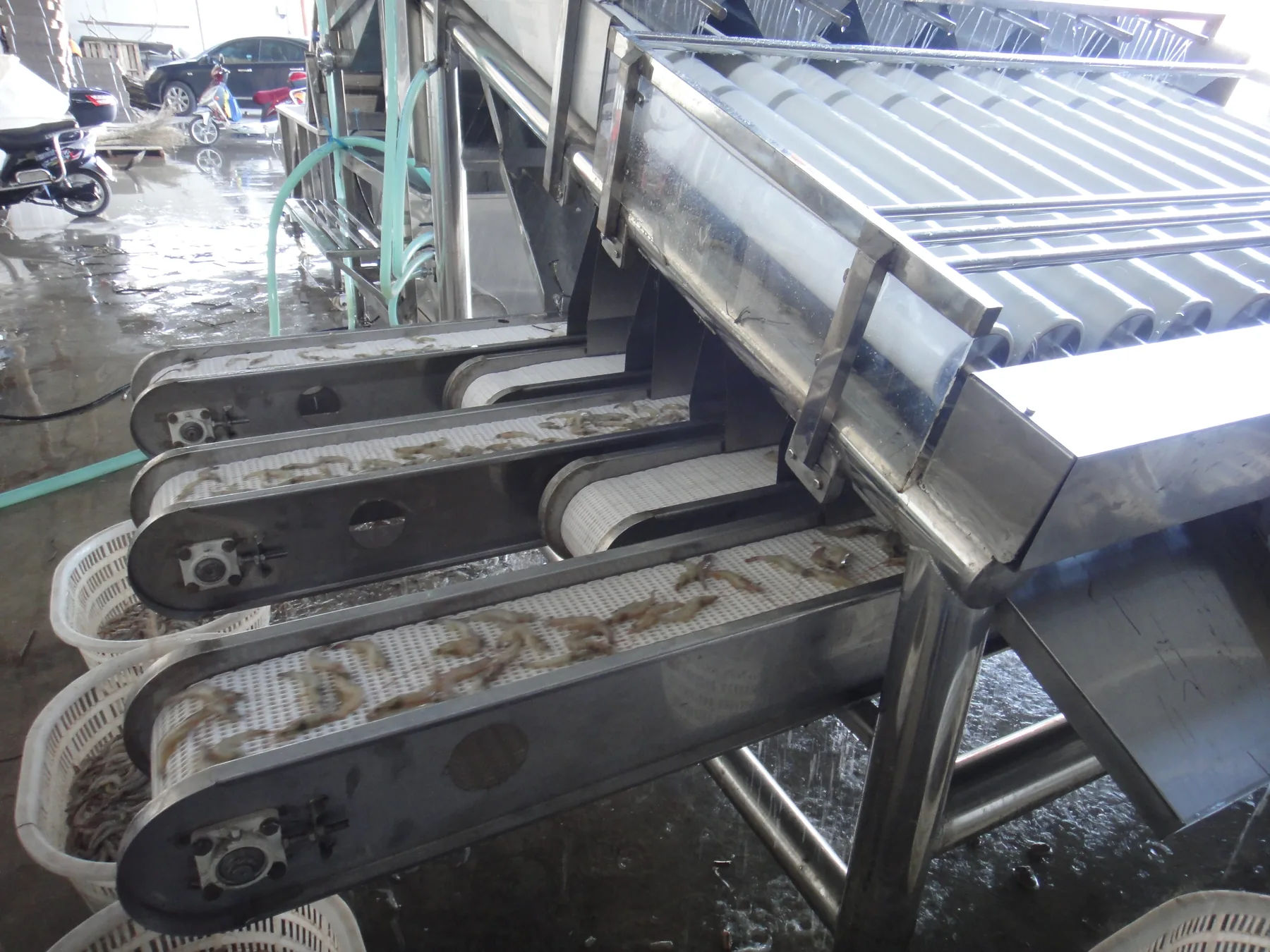

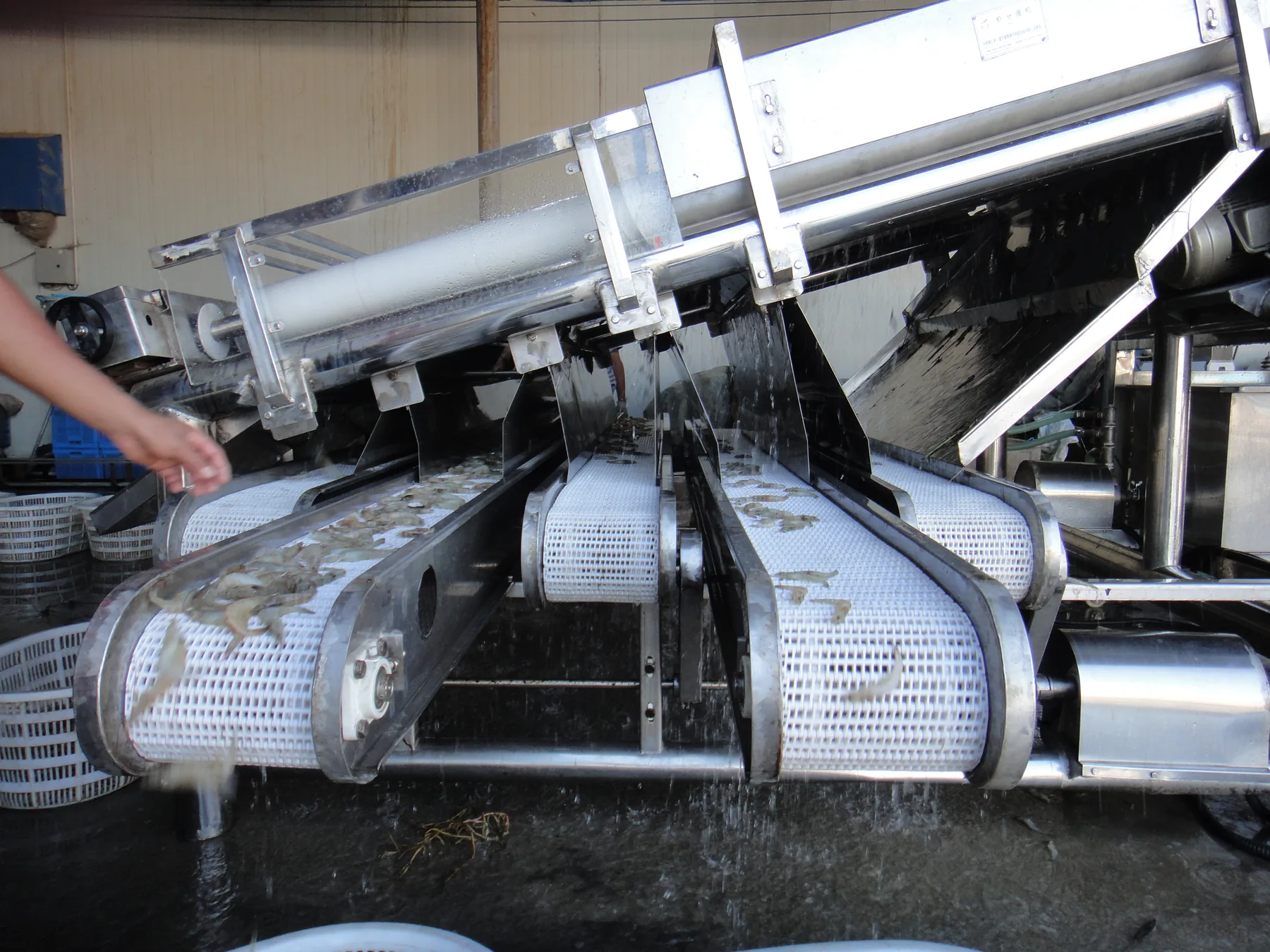

Multiple discharge conveyors for separated grades
STANDARD TECHNICAL PARAMETERS
Choose a grading capacity around your shrimp line.
The following data is taken from the supplied standard shrimp grading machine parameter sheet. Final configuration is confirmed according to shrimp size, grade count and project layout.
| Model | Rollers | Dimensions (L × W × H) | Capacity |
|---|---|---|---|
| KFJ-1000 | 8 rollers | 5260 × 1300 × 2250 mm | 500–1000 kg/h |
| KFJ-2000 | 12 rollers | 7500 × 1900 × 2200 mm | 1000–2000 kg/h |
| KFJ-3000 | 18 rollers | 8500 × 1900 × 2805 mm | 1000–3000 kg/h |
Sizing standards for headless shell-on shrimp1/15 · 16/20 · 21/25 · 16/30 · 31/35 · 16/40 · 61/70 · 51/60 · 71/90 · 91/100 · 101/110 · 111/120 · 121/130 · 131/140 · 141/150 · 151/160 · 161/170 · 171/180 · 181/190 · 191/200
MACHINE DETAILS
Built for washing, grading and easy cleaning.
COOKED PRAWN PROCESSING LINE
Place the grader inside a complete seafood export line.
A representative cooked prawn line can combine bubble washing, belt blanching, cooling, shrimp grading, selection, spiral IQF freezing and weighing or packing.
Pre-processing EquipmentVegetables
Bubble Washer
The cleaning machine is primarily comprised of a material conveying device, punching device, impurity removal device, bubbling device, spraying device,...View details
Pre-processing EquipmentVegetables
Chain Blanching Machine
A chain-type blancher is capable of blanching products and inhibiting the activity of enzymes in fruits and vegetables. This helps...View details
Cold Storage AccessoriesCold storage
Normal Temperature Cooler
The normal temperature cooling machine is fitted with a water spraying device at the feed inlet and a water tank...View details
Pre-processing EquipmentFood processing
Ice Water Pre-cooling Machine
The ice water pre-cooling machine consists of an ice water cooling tank and conveying tank, where material and ice water...View details
Material HandlingProcessing line
Picking Conveyor
The sorting machine consists of a material conveying system, a waste conveying system, a working table, a frame, and a...View details
Pre-processing EquipmentShrimp / Seafood
Shrimp Grading Machine,Sorting Machine
The shrimp grading machine,is also called prawn grading machine, uses size differences to sort shrimps, prawns, sardines and other materials.View details
IQF FreezersPrepared food
LSJ Series IQF Spiral Freezer
IQF Spiral Freezer(Spiral IQF): Accommodates seafood, fruits, and vegetables not suitable for IQF processes, saving space and enhancing productivity.View detailsOPERATION VIDEOS
See the shrimp grader and line in operation.
Watch the machine, cooked prawn line and multilingual product introductions.
Shrimp grading machine introduction
Shrimp grading machine operation
Cooked prawn processing line
Shrimp grader English animation
Shrimp grader Indonesian animation
Shrimp grader Spanish animation
FAQ
Questions about shrimp grading equipment.
What shrimp products can the machine grade?
The grader is designed for shrimp with or without heads, shelled shrimp and similar seafood products with a suitable shape and handling condition.
How many grading rollers are available?
The supplied standard parameter table lists 8-roller, 12-roller and 18-roller models. Other configurations can be discussed according to capacity and grading requirements.
What is the standard capacity range?
The reference table lists 500–1000 kg/h for KFJ-1000, 1000–2000 kg/h for KFJ-2000 and 1000–3000 kg/h for KFJ-3000.
How is grading size adjusted?
The roller spacing is adjusted to create the required grading gaps. The final grading range should be confirmed from shrimp size, count-per-pound standard and the desired number of grades.
Can it be connected to a cooked prawn line?
Yes. It can be integrated with washing, cooking, normal-temperature cooling, ice-water cooling, dewatering, freezing and weighing or packing equipment.
What information is needed for a quotation?
Please provide shrimp type, head-on or headless condition, shell condition, size range, hourly capacity, number of grades, factory voltage and downstream equipment.
Complete prawn line
From washing and cooking to grading and IQF freezing.
The shrimp grading machine can sit inside a cooked prawn line or seafood freezing line. Kanglong can match upstream washing and cooling equipment and downstream dewatering, glazing, packing or tunnel freezing.
WashCookCoolGradeDewaterIQF freeze
Processing demand
Built around shrimp grading, cooked prawn handling and export seafood workflows.
Shrimp and prawn processors that need stable size grading before packing
Cooked prawn plants combining washing, cooking, cooling, grading and IQF freezing
Seafood export factories and trading companies sourcing complete prawn processing lines
