The food blanching process utilizes spiral blanching to inhibit the enzyme activity of fruits and vegetables, maintain the fresh color, green taste and aroma of fruits and vegetables, improve cell flexibility and water evaporation, lay the foundation for subsequent processing needs, effectively improve quality stability, increase efficiency, reduce labor and energy consumption, and reduce production costs.
The food blanching process utilizes a spiral blanching mechanism to inhibit enzyme activity in fruits and vegetables, preserving their fresh color, green aroma, and flavor. It also improves cell flexibility and promotes water evaporation, laying a solid foundation for subsequent processing needs. This effectively enhances quality consistency, increases efficiency, reduces labor and energy consumption, and lowers production costs.

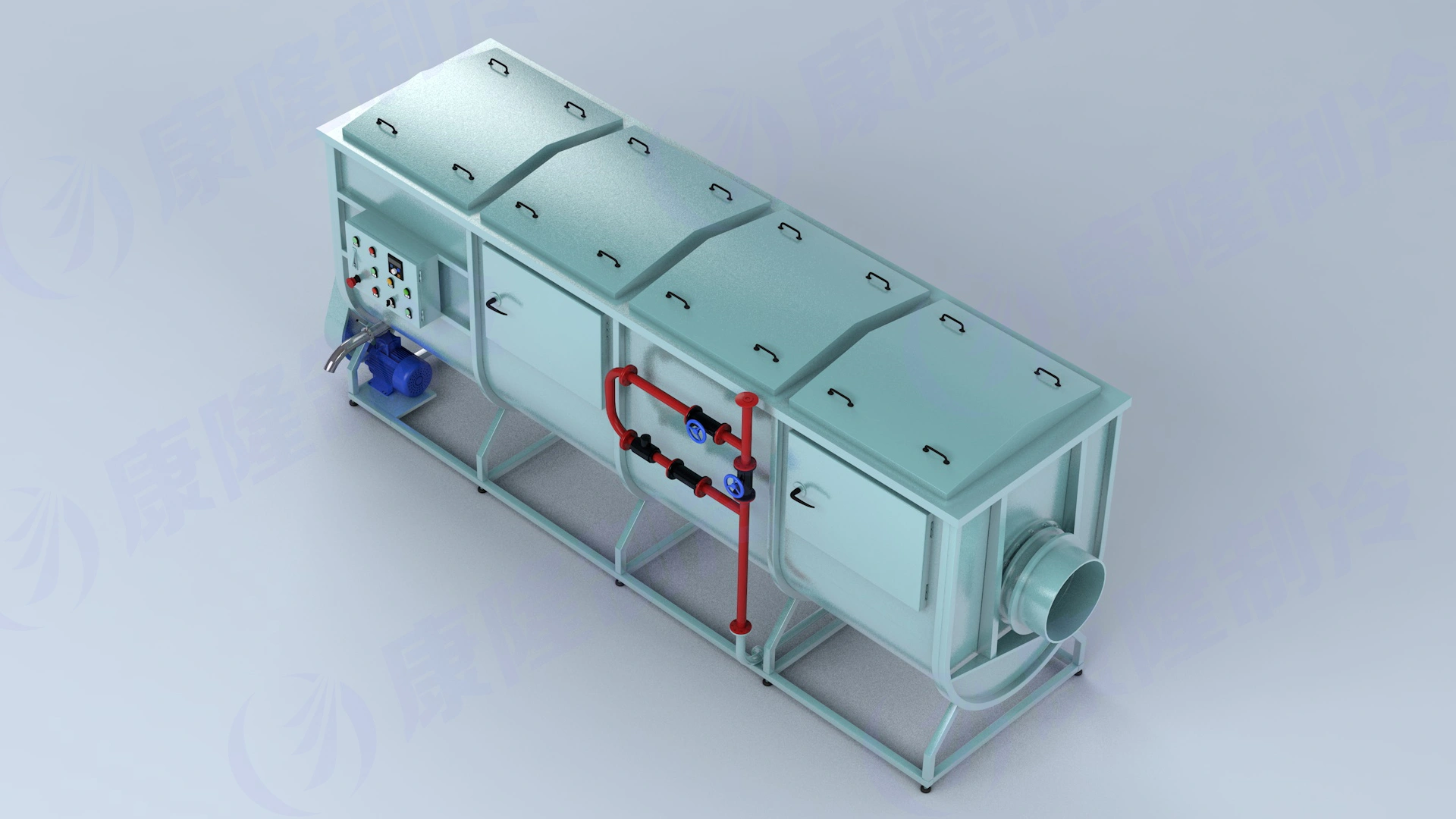

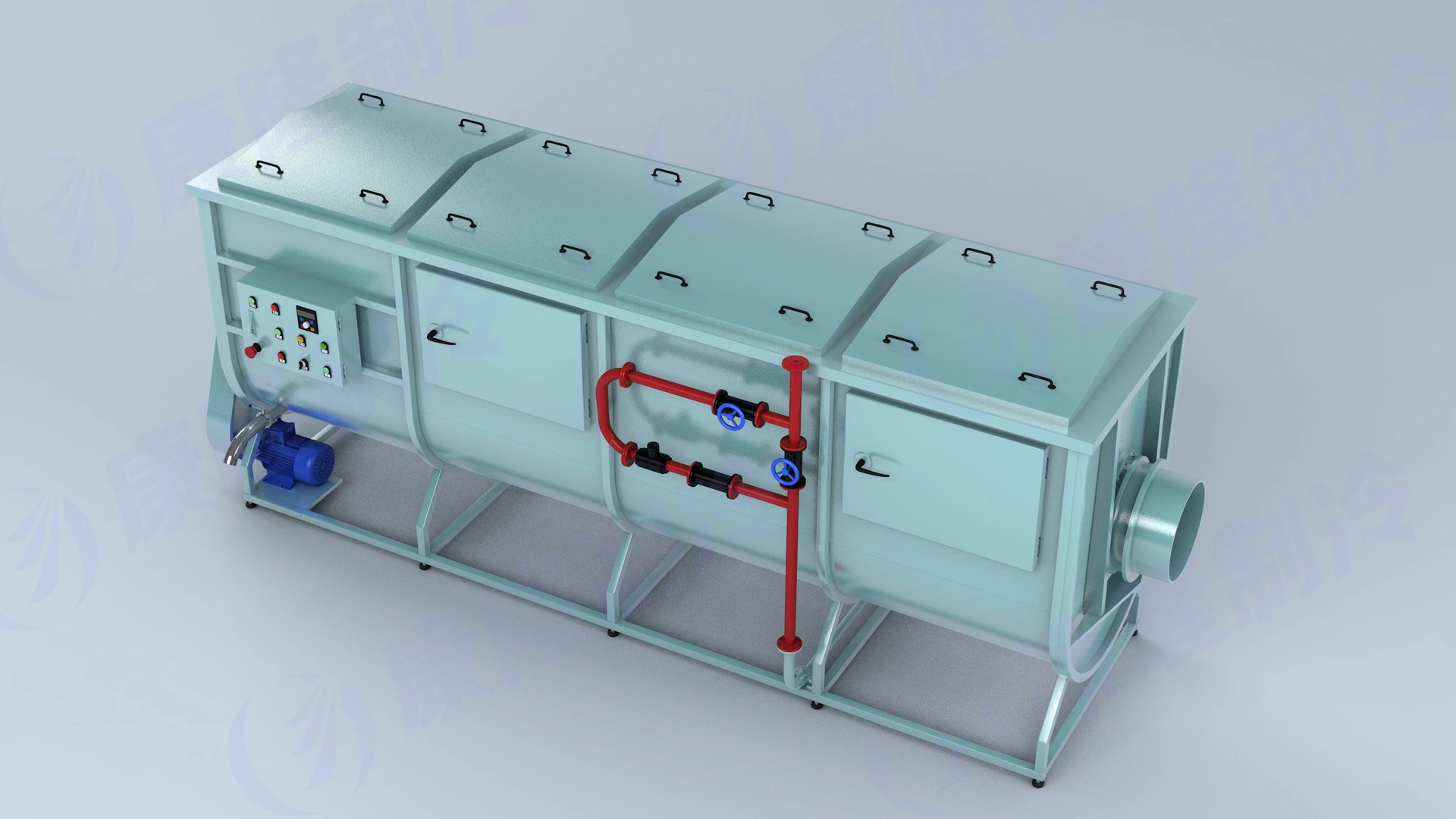

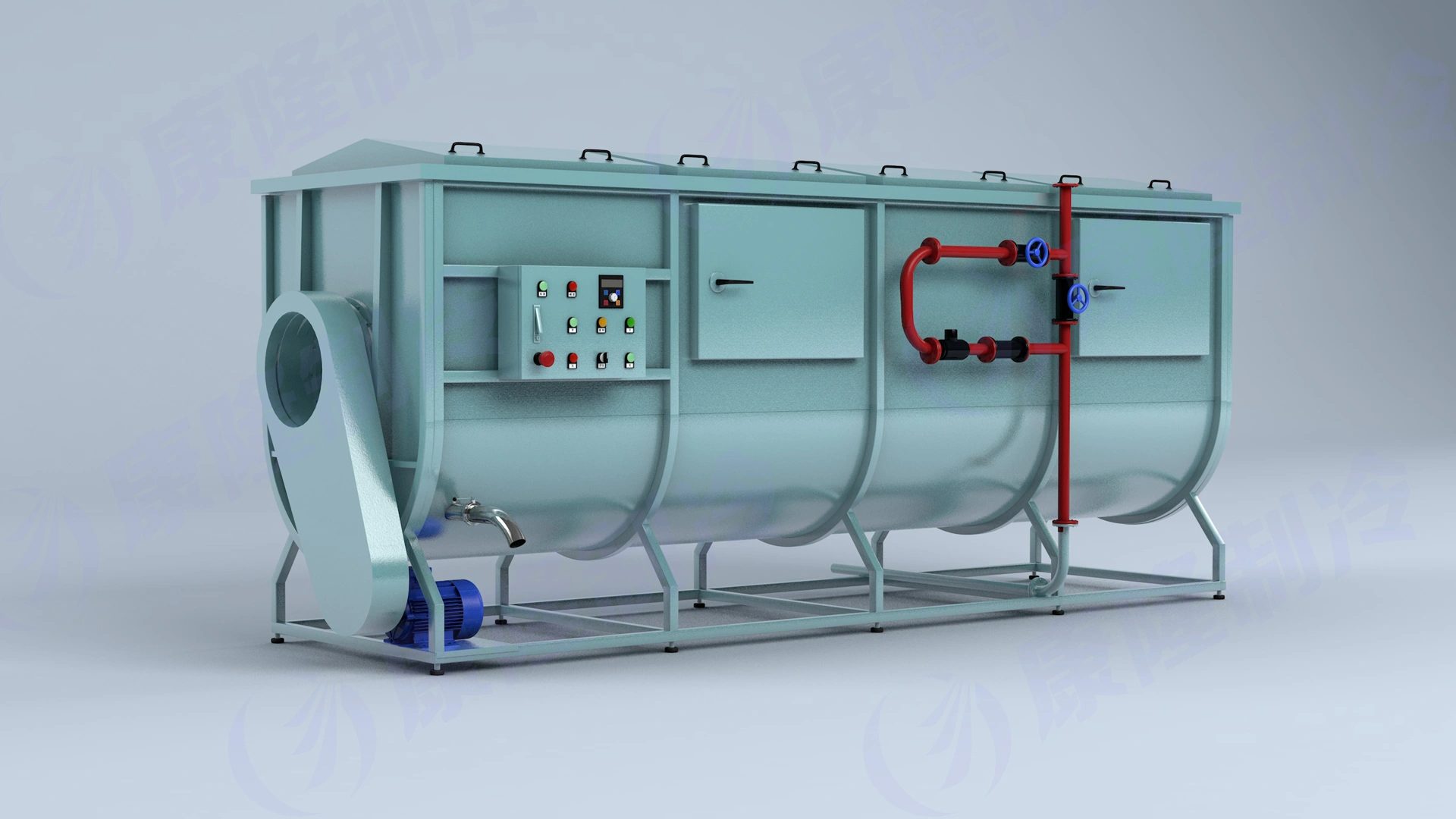

The spiral blanching machine utilizes a double-cylinder structure, with the outer cylinder constructed from perforated plate. A spiral plate propels the material between the inner and outer cylinders, and a steam heating pipe is installed within the water tank.
The water tank body features a water-sealed steam cover with sanitary doors on both sides for easy opening and closing. The drive utilizes a cycloidal pinwheel reducer, and the blanching time is controlled by a frequency converter.
Except for the reducer and electrical components, the entire machine is constructed from durable and reliable stainless steel (SUS304), ensuring easy operation and maintenance.
| Dimensions | 3685*1480*2000mm |
|---|---|
| Installed Power | 1kw |
| Voltage | 380V, 50Hz |
| Water Consumption | 0.25~0.3T/h |
| The amount of steam consumption | 0.3T/h (0.4~0.7MPa) |
| Cooling Capacity | / |
| Processing Capacity | 0.5T / h |
| Feeding Form | Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device |
| Electrical Control | The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
| Description Of Materials | This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts |
| Equipment Use | It is used for quick-frozen and dehydrated vegetables, fruits, aquatic products, etc. It is especially suitable for granular and small block products |
| Dimensions | 4385*1480*2000mm |
|---|---|
| Installed Power | 1.5kw |
| Voltage | 380V, 50Hz |
| Water Consumption | 0.5~0.7T/h |
| The amount of steam consumption | 0.5~0.7T/h (0.4~0.7MPa) |
| Cooling Capacity | / |
| Processing Capacity | 1 ~ 1.5T / h |
| Feeding Form | Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device |
| Electrical Control | The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
| Description Of Materials | This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts |
| Equipment Use | It is used for quick-frozen and dehydrated vegetables, fruits, aquatic products, etc. It is especially suitable for granular and small block products |
| Dimensions | 5490*1810*2470mm |
|---|---|
| Installed Power | 3.0kw |
| Voltage | 380V, 50Hz |
| Water Consumption | 1~1.5T/h |
| The amount of steam consumption | 1.0~1.5T/h (0.4~0.7MPa) |
| Cooling Capacity | / |
| Processing Capacity | 2~3T/h |
| Feeding Form | Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device |
| Electrical Control | The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
| Description Of Materials | This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts |
| Equipment Use | It is used for quick-frozen and dehydrated vegetables, fruits, aquatic products, etc. It is especially suitable for granular and small block products |
Please let us know the materials you need to process and your production requirements.
We will offer you professional suggestions on solutions.
