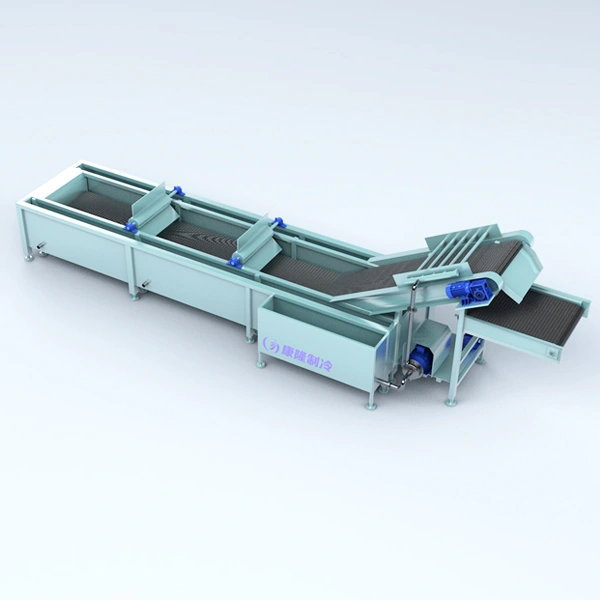

This bubble washing machine primarily consists of a material conveying device, a punching unit, a debris removal unit, a bubbling device, a spraying unit, and a water filtration and circulation system. The water flow and bubbling volume can be adjusted to suit the material and processing technique, and the material conveying speed can be controlled via a frequency converter. With the exception of the reducer and electrical components, all components are constructed of stainless steel (SUS304), ensuring durability, stability, reliability, and ease of operation and maintenance.
This equipment is used for cleaning vegetables, fruits, seafood, and Chinese medicinal herbs.
This multifunctional cleaning machine integrates multiple cleaning methods, delivering a more comprehensive and thorough cleaning effect than traditional cleaning machines. This improved cleaning quality not only stabilizes product quality but also improves efficiency, reduces labor costs, saves energy, and lowers production costs.
This cleaning machine primarily consists of a material conveying device, a punching unit, a debris removal unit, a bubbling unit, a spraying unit, and a water filtration and circulation unit. The water flow rate and bubbling volume can be adjusted to suit different materials and processing techniques, and the material conveying speed can be adjusted using a frequency converter. Except for the reducer and electrical components, all components of the machine are made of stainless steel (SUS304), ensuring durability, reliability, and ease of operation and maintenance.
| Dimensions | 4135*1460*1390mm |
|---|---|
| Installed Power | 4.45kw |
| Voltage | 380V, 50Hz |
| Water Consumption | 0.3~0.5T/h (Recycled Water) |
| The amount of steam consumption | / |
| The amount of cooling | / |
| Processing Capacity | 0.5 ~ 1.5T / H |
| Feeding Form | Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device |
| Electrical Control | The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
| Description Of Materials | This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts |
| Equipment Use | Used for cleaning vegetables, fruits, aquatic products and Chinese herbal medicines |
| Dimensions | 4135*1460*1390mm |
|---|---|
| Installed Power | 5.6kw |
| Voltage | 380V, 50Hz |
| Water Consumption | 0.6 ~ 1T /h (Recycled Water) |
| The amount of steam consumption | / |
| The amount of cooling | / |
| Processing Capacity | 1.5 ~ 2.5T / H |
| Feeding Form | Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device |
| Electrical Control | The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
| Description Of Materials | This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts |
| Equipment Use | Used for cleaning vegetables, fruits, aquatic products and Chinese herbal medicines |
| Dimensions | 5235*1460*1390mm |
|---|---|
| Installed Power | 6.6kw |
| Voltage | 380V, 50Hz |
| Water Consumption | 1 ~ 1.2T /h (Recycled Water) |
| The amount of steam consumption | / |
| The amount of cooling | / |
| Processing Capacity | 2.5 ~ 3.5T / H |
| Feeding Form | Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device |
| Electrical Control | The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
| Description Of Materials | This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts |
| Equipment Use | Used for cleaning vegetables, fruits, aquatic products and Chinese herbal medicines |
| Dimensions | 6575*1760*1390mm |
|---|---|
| Installed Power | 7.8kw |
| Voltage | 380V, 50Hz |
| Water Consumption | 1.2~2.0T/h (Recycled Water) |
| The amount of steam consumption | / |
| The amount of cooling | / |
| Processing Capacity | 3.5 ~ 4.5T / H |
| Feeding Form | Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device |
| Electrical Control | The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
| Description Of Materials | This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts |
| Equipment Use | Used for cleaning vegetables, fruits, aquatic products and Chinese herbal medicines |
| Dimensions | 7795*1860*1390mm |
|---|---|
| Installed Power | 8.5kw |
| Voltage | 380V, 50Hz |
| Water Consumption | 1.5~2.5T/h (Recycled Water) |
| The amount of steam consumption | / |
| The amount of cooling | / |
| Processing Capacity | 4.5 ~ 5.5T / H |
| Feeding Form | Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device |
| Electrical Control | The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
| Description Of Materials | This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts |
| Equipment Use | Used for cleaning vegetables, fruits, aquatic products and Chinese herbal medicines |
1. Electrical Control: Electrical components are from Zhejiang Chint, and the drive inverter is from Taiwan Delta.
2. Materials: Except for standard components such as the motor and electrical components, all other components are made of SUS304 stainless steel.
3. The bubble cleaner is equipped with a flushing device and a bubble device.
4. The conveyor belt is equipped with an adjustable tensioner for easy disassembly.
5. The cleaning tank has an optimized design with increased height and width, and large-diameter cleaning holes on the sides for easier cleaning.
6. The V-shaped bottom of the tank prevents scale accumulation, and a drain outlet is provided at the bottom of the tank for more thorough drainage.
8. Variable Frequency Speed Control
