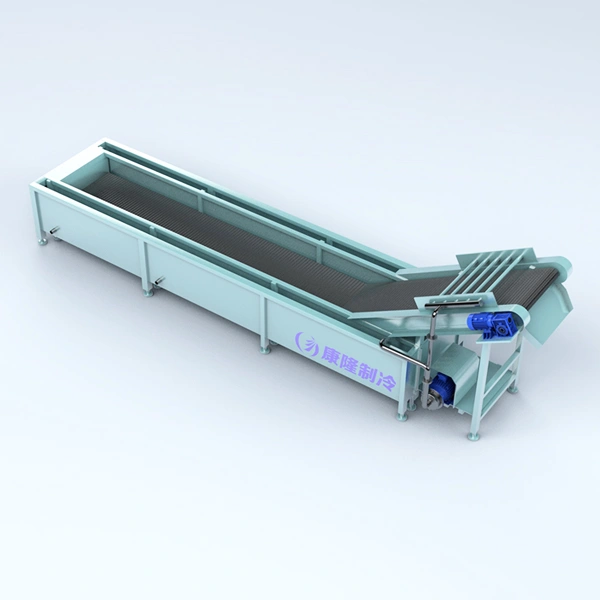

Normal-temperature Pre-cooler

The normal temperature water pre-cooler features a water spray device at the feed inlet and bubble cooling lines within the water tank. Multiple water spray cooling lines are located outside the water tank, achieving dual cooling effects of bubble and water spray. The transmission system utilizes a cycloid reducer, and the cooling time is controlled by a frequency converter.

PRODUCT DETAILS

Normal-temperature water pre-coolers operate at room temperature, effectively pre-cooling food and reducing the load on the ice water pre-cooler. This effectively improves and stabilizes product quality during the subsequent quick-freezing process, increases efficiency, reduces labor, lowers energy consumption, and lowers production costs.

This machine features a water spray device at the feed inlet and bubble cooling lines within the water tank. Multiple sets of water spray cooling lines are located outside the water tank, providing dual cooling effects of bubble and water spray. The drive system utilizes a cycloidal pinwheel reducer, and the cooling time can be adjusted using a frequency converter.

Except for the reducer and electrical components, the equipment is constructed of durable stainless steel (SUS304). This ensures stable performance, durability, and easy operation and maintenance.

Pre-cooking fruits and vegetables in ambient-temperature water followed by pre-cooling is a common process in vegetable dehydration and quick-freezing lines.

1T/H Normal-temperature Pre-cooler

Dimensions	588016001200mm
Installed Power	3.3kw
Voltage	380V, 50Hz
Water Consumption	0.3~0.5T/h (Recycled water)
The amount of steam consumption	/
Cooling Capacity	50KW (Condition: +45°C~-5°C)
Processing Capacity	1.0T / H
Feeding Form	Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device
Electrical Control	The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta
Description Of Materials	This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts
Equipment Use	It is used to cool the fruits and vegetables after blanching, so that the center temperature drops to about 15 °C

2T/H Normal-temperature Pre-cooler

Dimensions	588016001200mm
Installed Power	2.25kw
Voltage	380V, 50Hz
Water Consumption	5 ~ 6T / H (Including spray cooling water)
The amount of steam consumption	/
The Amount Of Cooling	/
Processing Capacity	1.5 ~ 2.5T/ H
Feeding Form	Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device
Electrical Control	The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta
Description Of Materials	This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts
Equipment Use	Pre-cooled pre-cooked fruits and vegetables by using normal temperature water, which is often used in vegetable dehydration and quick-freezing production lines

3T/H Normal-temperature Pre-cooler

Dimensions	466012501330mm
Installed Power	2.25kw
Voltage	380V, 50Hz
Water Consumption	8 ~ 9T / H (Including spray cooling water)
The amount of steam consumption	/
The Amount Of Cooling	/
Processing Capacity	2.5 ~ 3.5T/ H
Feeding Form	Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device
Electrical Control	The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta
Description Of Materials	This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts
Equipment Use	Pre-cooled pre-cooked fruits and vegetables by using normal temperature water, which is often used in vegetable dehydration and quick-freezing production lines

4T/H Normal-temperature Pre-cooler

Dimensions	588013501330mm
Installed Power	3.3kw
Voltage	380V, 50Hz
Water Consumption	10 ~ 12T / H (Including spray cooling water)
The amount of steam consumption	/
The Amount Of Cooling	/
Processing Capacity	3.5 ~ 4.5T / H
Feeding Form	Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device
Electrical Control	The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta
Description Of Materials	This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts
Equipment Use	Pre-cooled pre-cooked fruits and vegetables by using normal temperature water, which is often used in vegetable dehydration and quick-freezing production lines

5T/H Normal-temperature Pre-cooler

Dimensions	588014501330mm
Installed Power	3.7kw
Voltage	380V, 50Hz
Water Consumption	13 ~ 15T / H (Including spray cooling water)
The amount of steam consumption	/
The Amount Of Cooling	/
Processing Capacity	4.5 ~ 5.5T / H
Feeding Form	Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device
Electrical Control	The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta
Description Of Materials	This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts
Equipment Use	Pre-cooled pre-cooked fruits and vegetables by using normal temperature water, which is often used in vegetable dehydration and quick-freezing production lines
