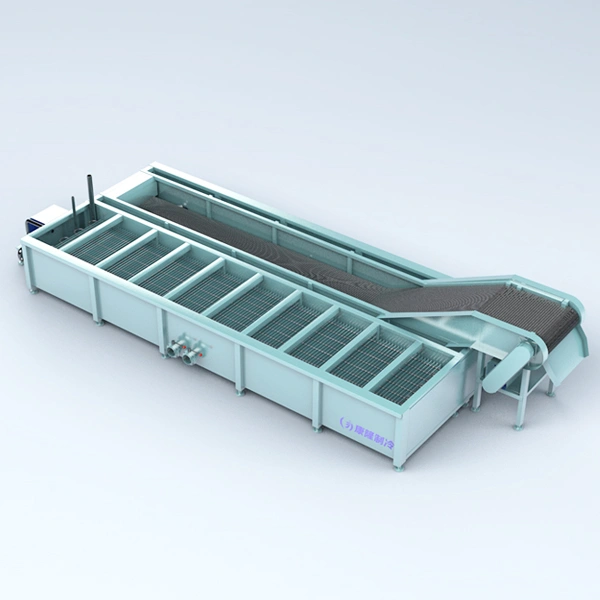

Ice-water Pre-cooler

The ice-water pre-cooler consists of a chilled water cooling tank and a transfer tank. Reverse heat exchange is used between the material and the chilled water to improve cooling efficiency. Circulation heating is achieved through vertical piping and a water pump. The cooling tank features a stainless steel seamless heat transfer coil (evaporation tube). The transmission mechanism utilizes a cycloid reducer and variable frequency speed regulation to control cooling time.

PRODUCT DETAILS

Deep cooling of blanched fruits and vegetables requires lowering the internal temperature to approximately 10 to 15 degrees Celsius.

Using an ice water pre-cooler is an effective way to improve food quality and stability, while also increasing efficiency and reducing labor, energy, and production costs in the subsequent quick-freezing process.

The ice water pre-cooler consists of an ice water cooling tank and a transfer tank. The product and ice water undergo a reverse heat exchange process to enhance cooling efficiency. Vertical piping and a water pump are used for heat circulation, and the cooling tank is equipped with a stainless steel seamless tube heat transfer coil (evaporation exhaust pipe). The transmission mechanism utilizes a cycloidal pinwheel reducer, and the cooling time is variable frequency controlled.

Except for the reducer and electrical components, all other components of this equipment are made of durable and stable stainless steel (SUS304). This makes it user-friendly, easy to operate, and simple to maintain.

1T/H Ice-water Pre-cooler

Dimensions	588016001200mm
Installed Power	3.3kw
Voltage	380V, 50Hz
Water Consumption	0.3~0.5T/h (Recycled water)
The amount of steam consumption	/
Cooling Capacity	50KW (Condition: +45°C~-5°C)
Processing Capacity	1.0T / H
Feeding Form	Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device
Electrical Control	The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta
Description Of Materials	This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts
Equipment Use	It is used to cool the fruits and vegetables after blanching, so that the center temperature drops to about 15 °C

2T/H Ice-water Pre-cooler

Dimensions	710018251200mm
Installed Power	3.7kw
Voltage	380V, 50Hz
Water Consumption	0.6 ~ 1T / h (Recycled water)
The amount of steam consumption	/
Cooling Capacity	100KW (condition: +45°C~-5°C)
Processing Capacity	2.0T / H
Feeding Form	Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device
Electrical Control	The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta
Description Of Materials	This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts
Equipment Use	It is used to cool the fruits and vegetables after blanching, so that the center temperature drops to about 15 °C

3T/H Ice-water Pre-cooler

Dimensions	710024201200mm
Installed Power	3.7kw
Voltage	380V, 50Hz
Water Consumption	0.9~1.5T/ h (Recycled water)
The amount of steam consumption	/
Cooling Capacity	145KW (condition: +45°C~-5°C)
Processing Capacity	3.0T / H
Feeding Form	Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device
Electrical Control	The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta
Description Of Materials	This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts
Equipment Use	It is used to cool the fruits and vegetables after blanching, so that the center temperature drops to about 15 °C

4T/H Ice-water Pre-cooler

Dimensions	832025951200mm
Installed Power	5.2kw
Voltage	380V, 50Hz
Water Consumption	1.2~2T/ h (Recycled water)
The amount of steam consumption	/
Cooling Capacity	195KW (working conditions: +45 ° C ~ -5 ° C)
Processing Capacity	4.0T / H
Feeding Form	Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device
Electrical Control	The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta
Description Of Materials	This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts
Equipment Use	It is used to cool the fruits and vegetables after blanching, so that the center temperature drops to about 15 °C

5T/H Ice-water Pre-cooler

Dimensions	954027701200mm
Installed Power	6.2kw
Voltage	380V, 50Hz
Water Consumption	1.5~2.5T/ h (Recycled water)
The amount of steam consumption	/
Cooling Capacity	245KW (working conditions: +45 ° C ~ -5 ° C)
Processing Capacity	5.0T / H
Feeding Form	Mesh belt chain center width 600mm; frequency control;With a charging device, a de-doping device, a bubbling device, a spraying device, a water filtering circulation device
Electrical Control	The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta
Description Of Materials	This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts
Equipment Use	It is used to cool the fruits and vegetables after blanching, so that the center temperature drops to about 15 °C
