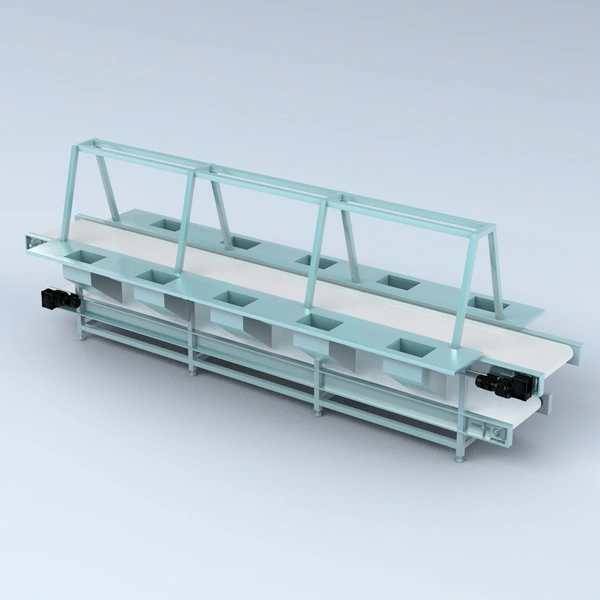

The sorting machine consists of a material conveying system, a waste conveying system, a working table, a frame, and a waste hopper. It comes in three variations to meet various needs, namely the single-layer, double-layer, and three-layer sorting machines. The conveyor belt is constructed using food-grade rubber for hygienic purposes, and the electronic control system manages the operation.
This equipment is primarily designed to remove discoloration, rot, pits, peels, and green leaves from fruits and vegetables.
Automatic sorting machines offer a superior alternative to manual sorting. Compared to traditional manual sorting methods, they automate the conveying of materials and waste, significantly reducing manual labor, ultimately improving operational efficiency and effectively lowering production costs.
The automatic sorting machine consists of a material conveying system, a waste conveying system, a workbench, a frame, and a waste hopper. It is available in three models to meet various needs: single-deck, double-deck, and triple-deck. The conveyor belt is made of food-grade rubber and meets hygiene standards, and its operation is controlled by an electronic control system.
Except for standard components such as the conveyor belt, speed reducer, and electrical components, all components of the machine are made of stainless steel (SUS304).
| Dimensions | 5000*1250*1000mm (The actual size can be adjusted) |
|---|---|
| Installed Power | 0.75kw |
| Voltage | 380V, 50Hz |
| Water Consumption | / |
| The amount of steam consumption | / |
| The amount of cooling | / |
| Processing Capacity | 1T / h |
| Feeding Form | PVC rubber belt center width 650mm; frequency control |
| Electrical Control | The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
| Description Of Materials | This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts |
| Equipment Use | Applicable mainly for the color change, deterioration, core removal, peeling, blanking, etc. of fruits and vegetables |
| Dimensions | 5000*1250*1000mm (The actual size can be adjusted) |
|---|---|
| Installed Power | 1.5kw |
| Voltage | 380V, 50Hz |
| Water Consumption | / |
| The amount of steam consumption | / |
| The amount of cooling | / |
| Processing Capacity | 1T / h |
| Feeding Form | PVC rubber belt center width 650mm; frequency control |
| Electrical Control | The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
| Description Of Materials | This equipment is made of SUS304 stainless steel except for standard parts such as motors, electrical appliances and conveyor belts |
| Equipment Use | Applicable mainly for the color change, deterioration, core removal, peeling, blanking, etc. of fruits and vegetables |

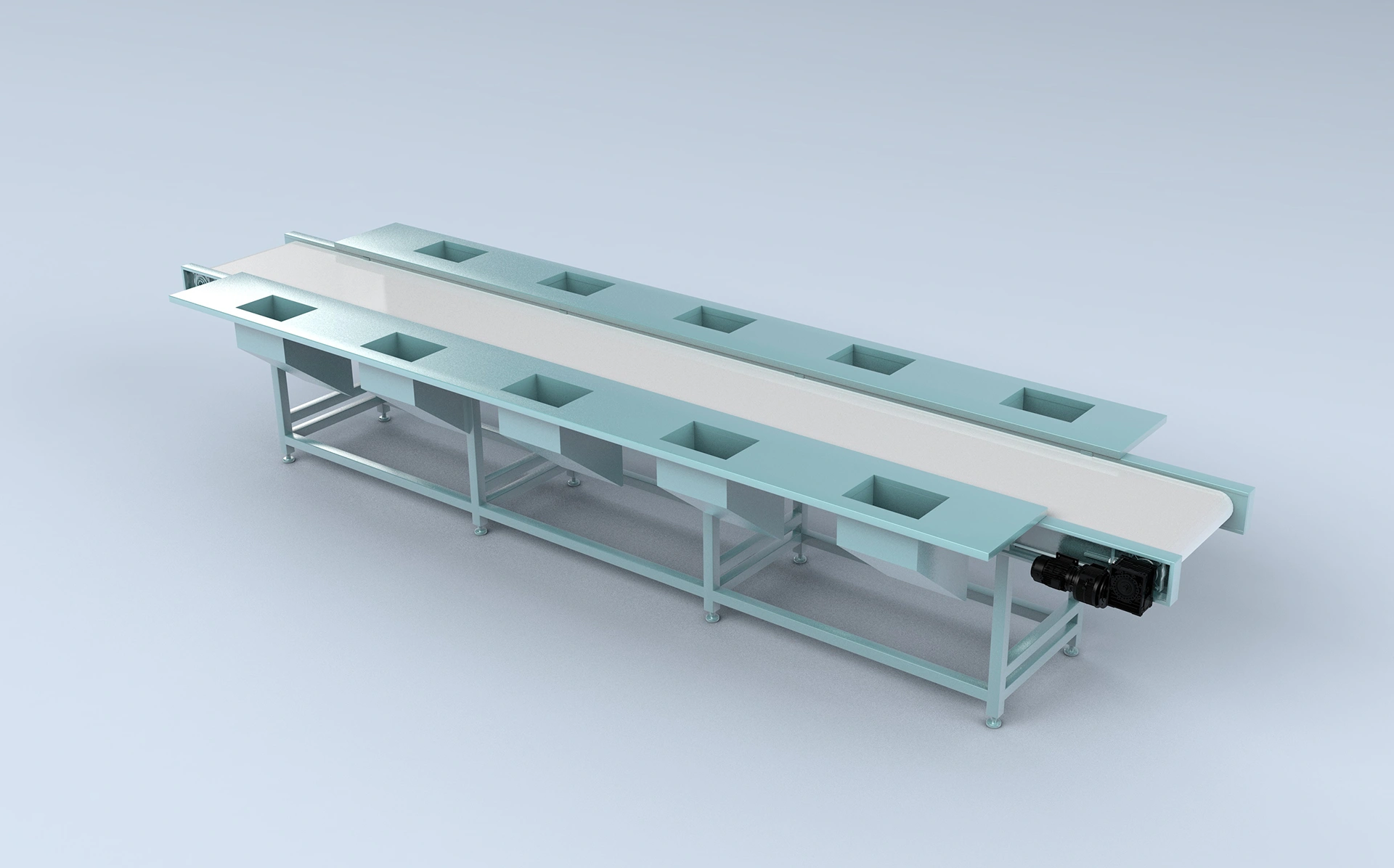

1. Single-layer sorting conveyor: PVC rubber belt with a center width of 650mm, variable speed control.

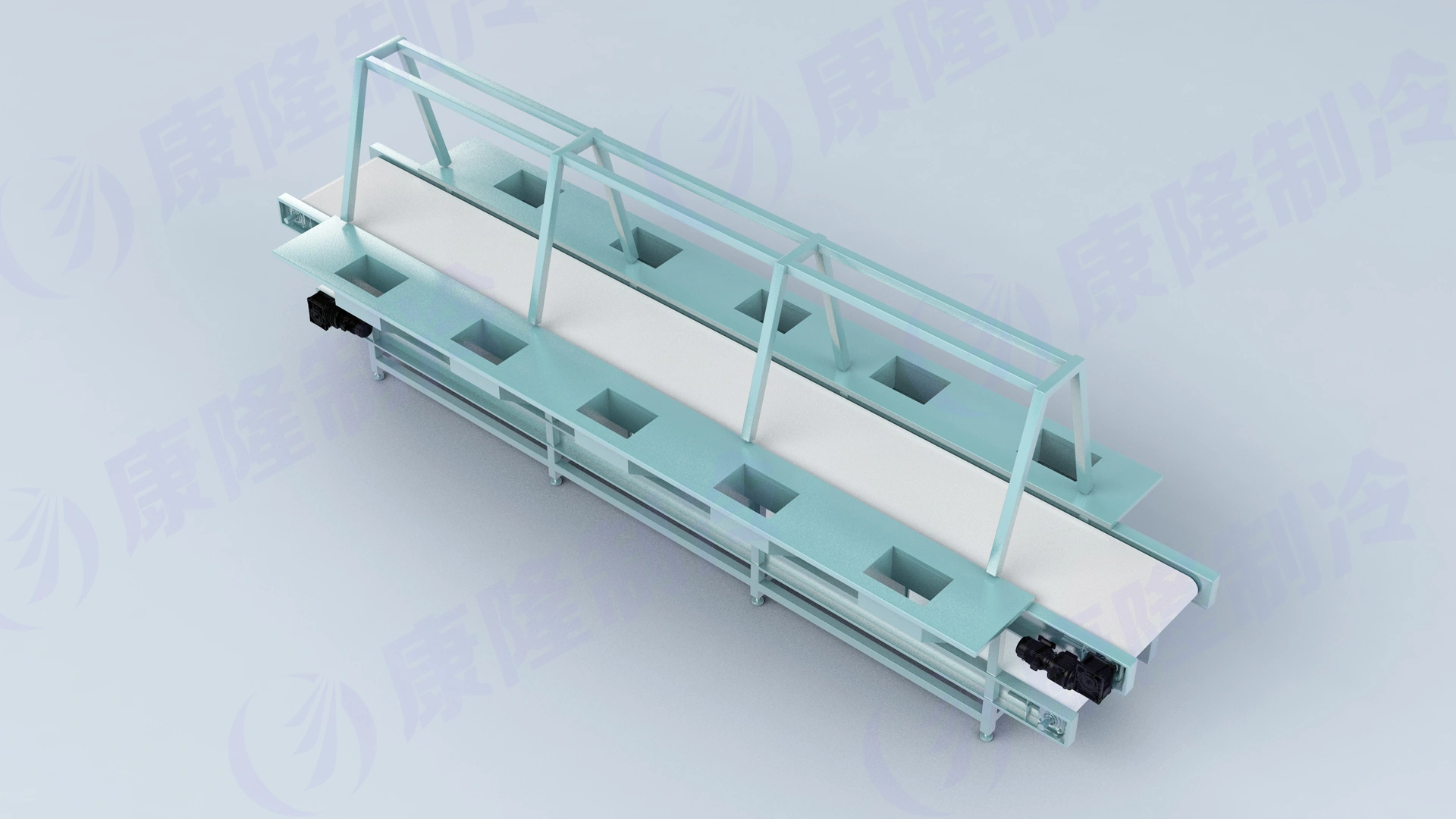

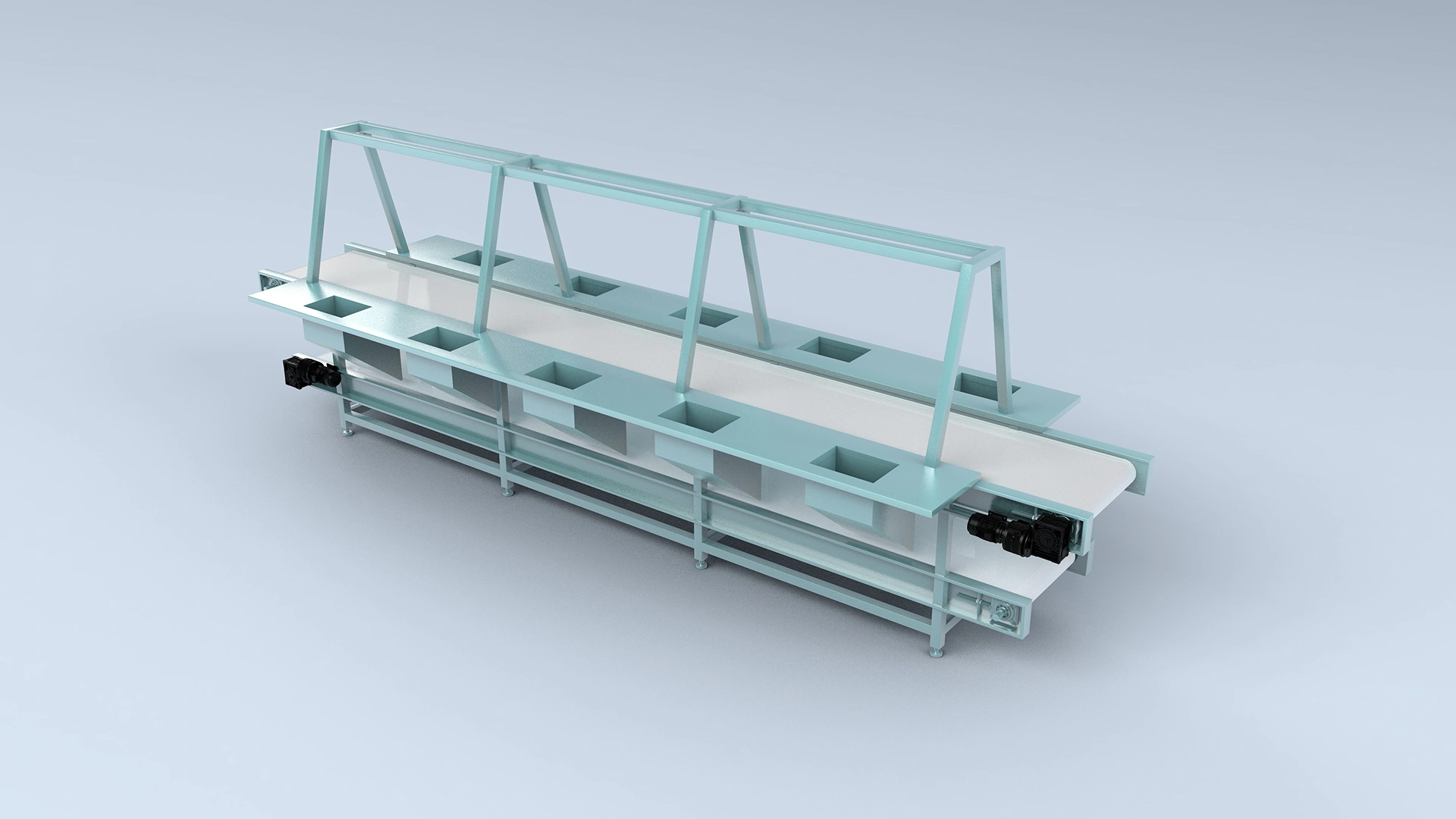

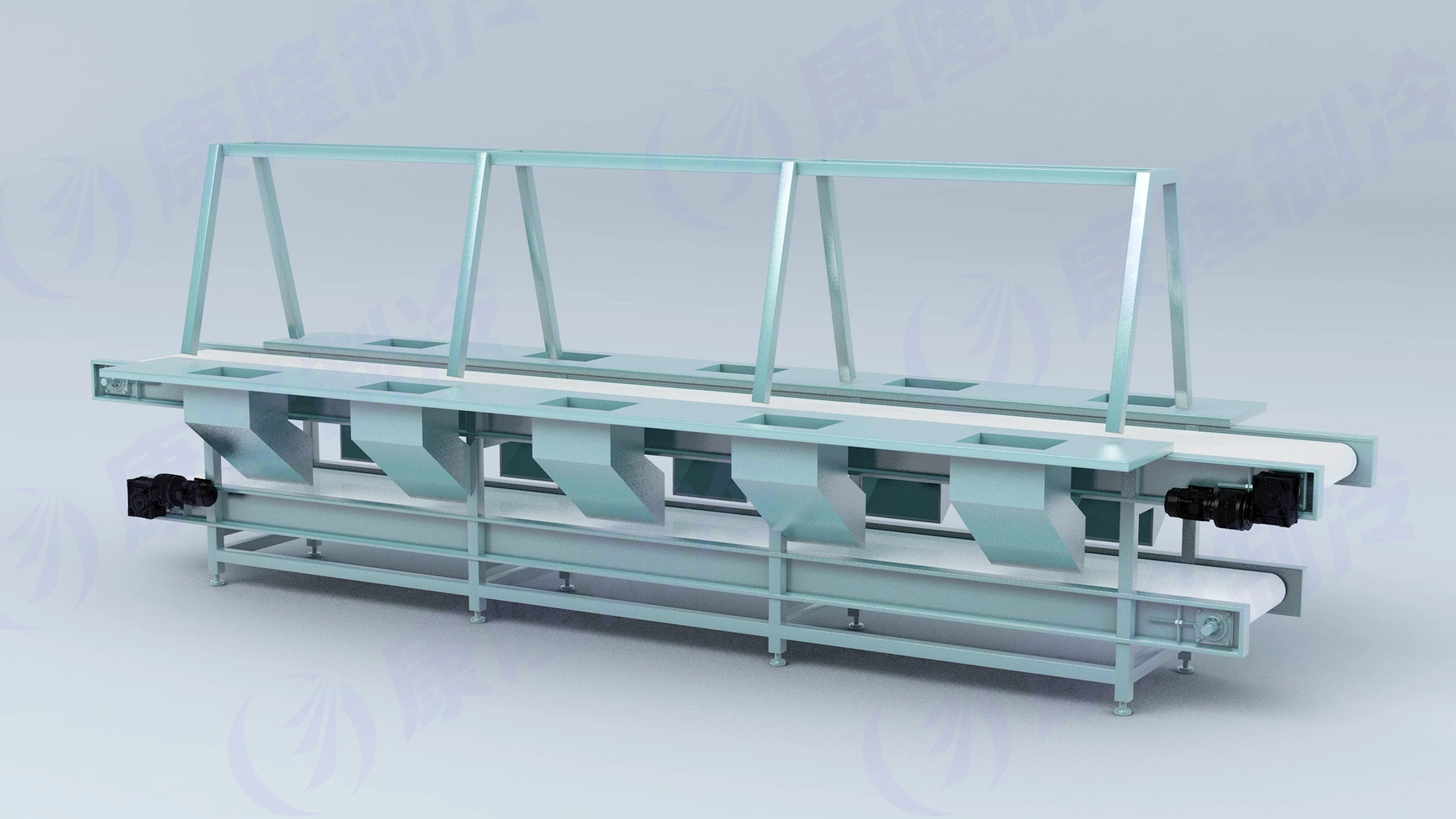

2. Double-layer sorting conveyor: PVC rubber belt with a center width of 650mm, variable speed control on the upper deck, constant speed on the lower deck.
Electrical control: Electrical components are from Chint, and the drive inverter is from Delta, Taiwan.
Material: Except for standard components such as the motor, electrical components, air ducts, fans, and heaters, all other components are made of SUS304 stainless steel.
Application: Primarily used for decolorizing, descaling, core removal, peeling, and leaf removal of fruits and vegetables.
Please let us know the materials you need to process and your production requirements.
We will offer you professional suggestions on solutions.
