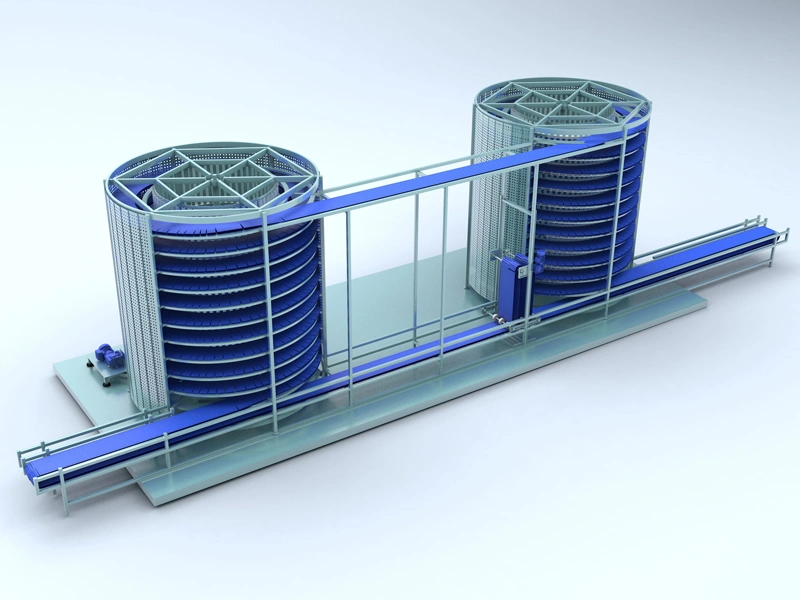

LSJ Series Spiral IQF Freezer

Ideal for granulated and small-piece food, large-sized frozen food, such as the prepared meals, whole chicken, and whole fish

PRODUCT DETAILS

With the rapid growth of the frozen food industry, the LSJ Series spiral quick freezer has become a top choice. It’s an ideal choice for businesses requiring compact, efficient equipment. This machine supports both top-blowing and side-blowing freezing. Freezing times are adjustable between 20 and 90 minutes. It’s ideal for freezing large, high-temperature items, such as prepared foods, small packaged foods, and cross-cut meats. It’s also well-suited for freezing ice cream and similar products.

It can also handle seafood, fruits, and vegetables, which may not be suitable for traditional spiral IQF processes. Its flexible design allows it to meet a variety of production needs, helping businesses streamline operations while ensuring quality. Whether freezing delicate produce or tough meats, it delivers reliable results every time.

Model/Parameters	LSJ-500	LSJ-1000	LSJ--1500	LSJ-2000	LSJ-3000
Capacity（kg/h）	500	1000	1500	2000	3000
Overall dimensions(m)	12.94.52.92	15.04.83.37	16.05.23.67	17.65.44.27	19.56.14.27
Length of freezing room(m)	9.9	12.0	13.0	14.6	16.5
Inlet material temperature(℃)			+15
Outlet material temperature(℃)			-18
Freezing temperature(℃)			≤-33
Freezing time（min）			10-100（variable frequency regulation）
Refrigerant			R22/R404A/R717
Cold Consumption（kw）	95	165	245	325	490
Installation Power（kw）	21.1	31.0	38.5	45	60

Product Details

Important Parts Display

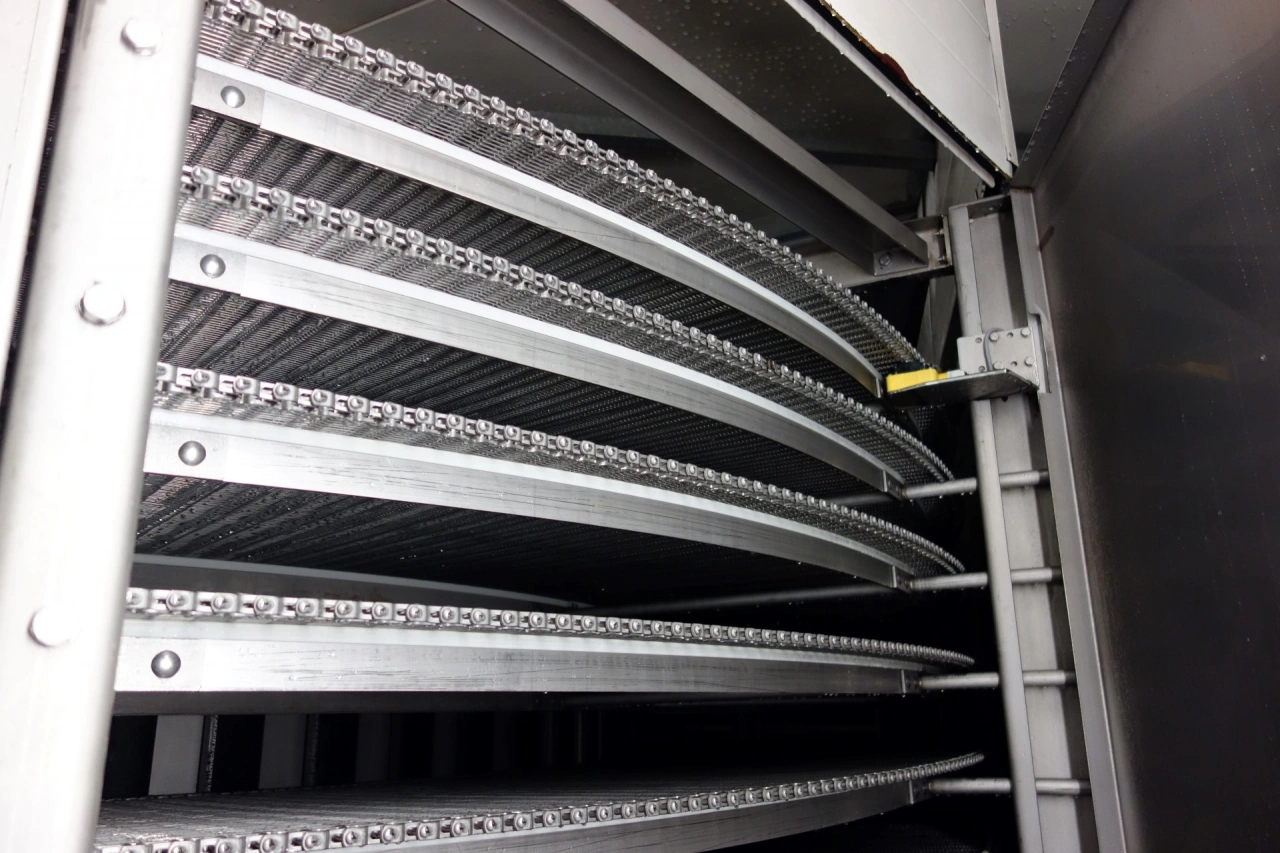

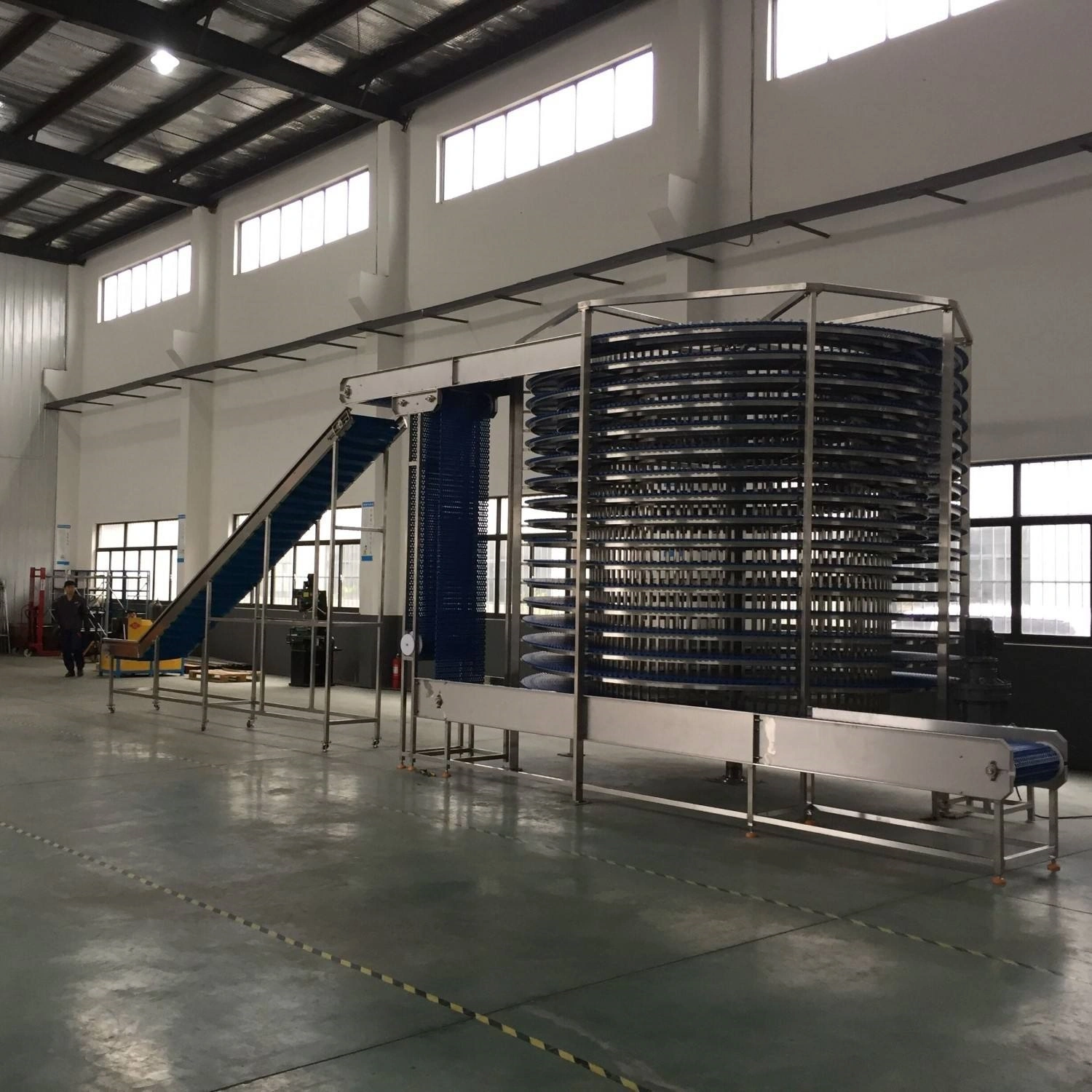

Belt Conveyor System	Belt Cleaning and Drying Device
Adopt spiral special belt with link joint on both sides. Material SUS304. Belt drive motor: gear reduction motor, with chain type, belt speed variable frequency stepless speed regulation. The mesh belt adopts wear resistant roller and bracket to reduce the wear and running resistance of the mesh belt, extending the service life of the mesh belt. The equipment is equipped with automatic belt tightening adjustment device, operation fault protection device, emergency stop device.	Vertical cabinet structure, the shell is made of stainless steel. Electrical components: the electrical components are Schneider or CHNT. PLC and touch screen are Siemens. Temperature display: multi-point display (inlet, outlet and center of library each has 1 set). The storeroom is equipped with a water-proof safety lamp lighting system, and the lighting is 36V safe voltage. The anti-freeze device system of the storage door, with 36V safe voltage.

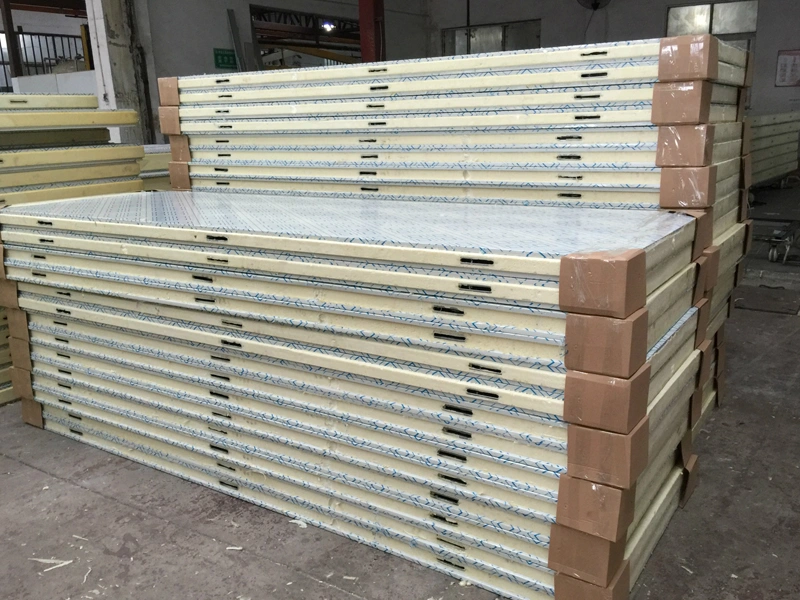

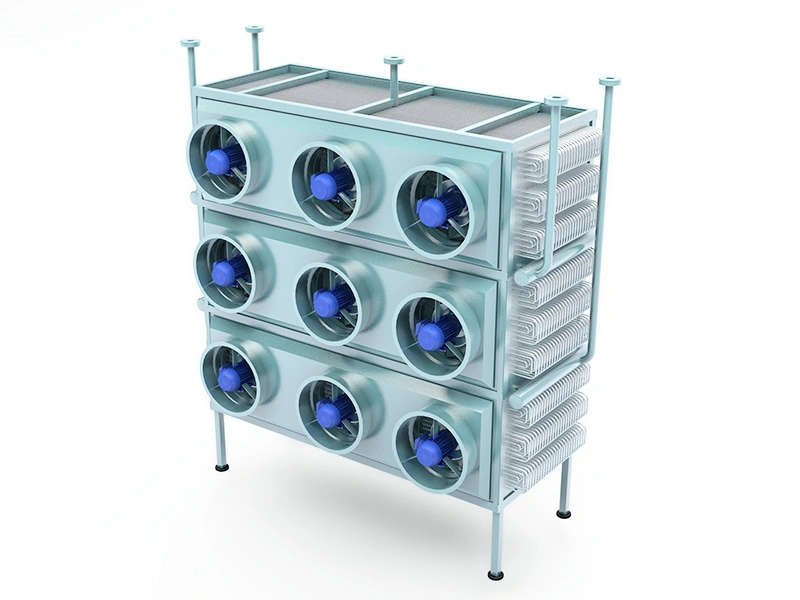

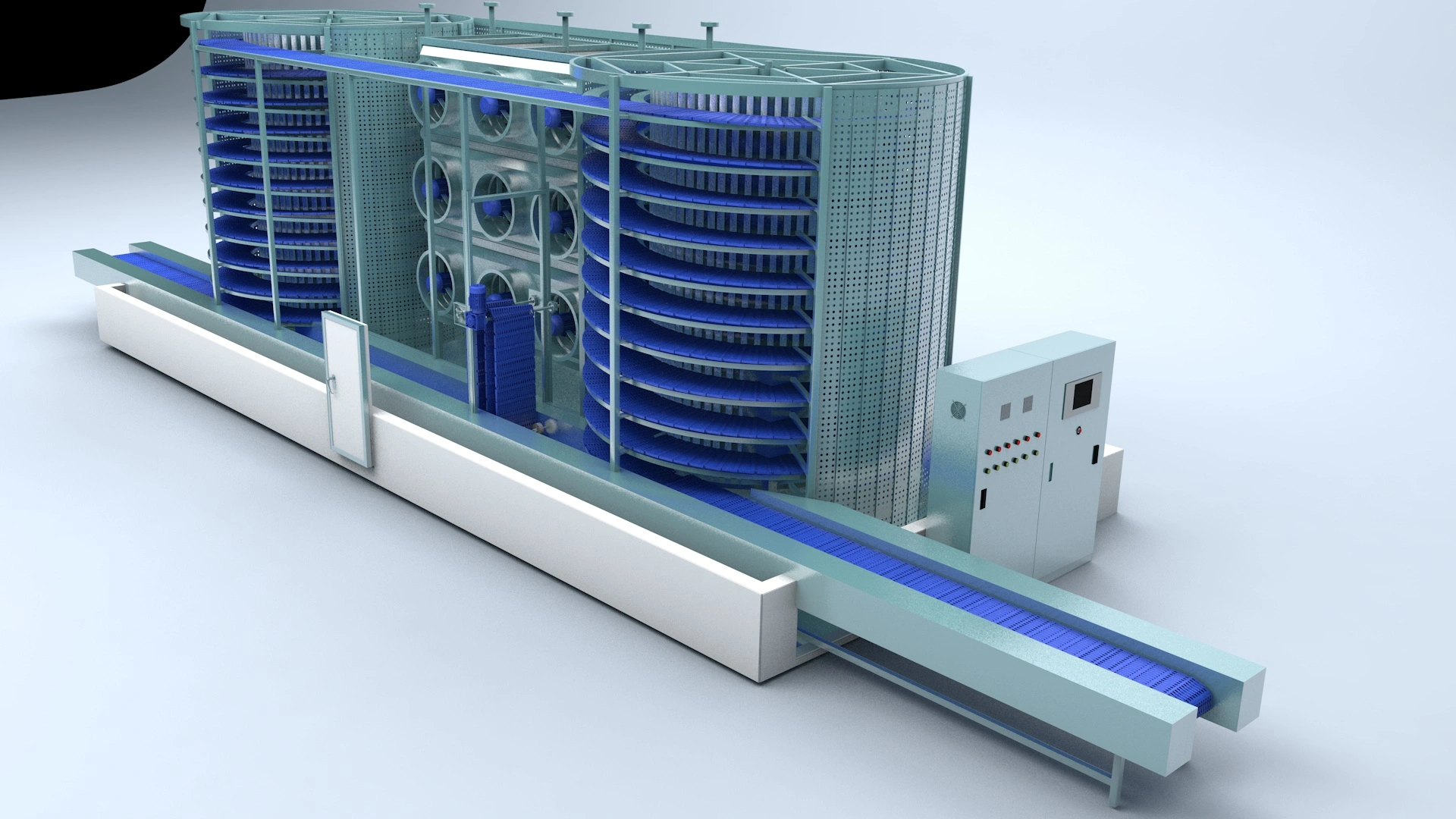

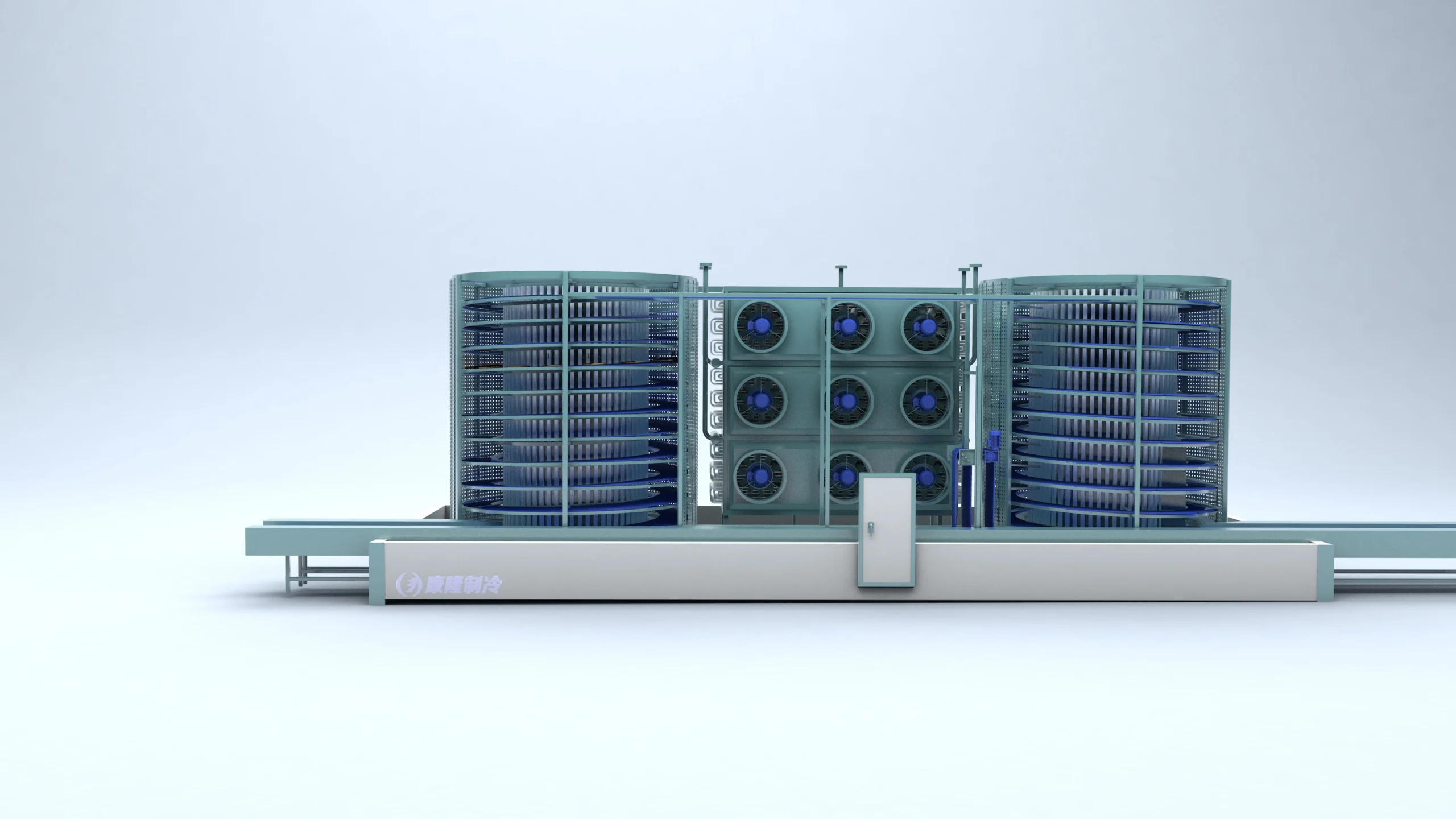

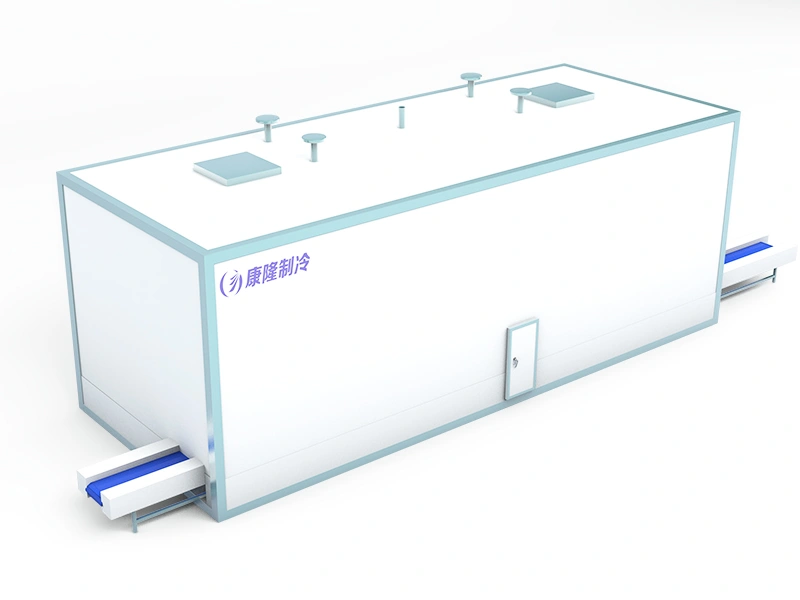

Composite Insulated Library	Air Supply System and High Efficiency Aluminum Alloy Evaporator
The library board is manufactured by the import production line. The stainless steel plates inside and outside the library body have a 0.6mm veneer with surface compression reinforcement and are applied with film. Thickness of polyurethane base plate: wall plate: top plate 150mm; bottom plate 180mm; foaming density: not less than 40kgf/cm2; with integral bottom plate waterproof treatment and support. The floor of the library is inclined to the left and right sides, with 2 draining ports at both sides. There is buried electric heating and antifreezing device inside the door of the thermal insulation storehouse. The bottom plate of the warehouse is tiled with decorative aluminum or stainless steel, and the edges are folded up around, and dealt with waterproof sealing.	Adopt efficient axial-flow fan specially designed for refrigeration and vibration-proof structure design. Adopt advanced mechanical hydraulic tube expansion technology. The evaporator pipe elbow adopts multi-inlet and multi-outlet welding to reduce the allowable length of each channel of coil to improve refrigeration efficiency. The evaporator sheet spacing structure is different, and each evaporator sheet spacing is designed with variable sheet spacing to ensure continuous and efficient freezing of quick-freezing function and extend the defrosting interval time. The closed air hood mechanism is adopted to improve the air output and air output uniformity, increase the heat transfer efficiency.

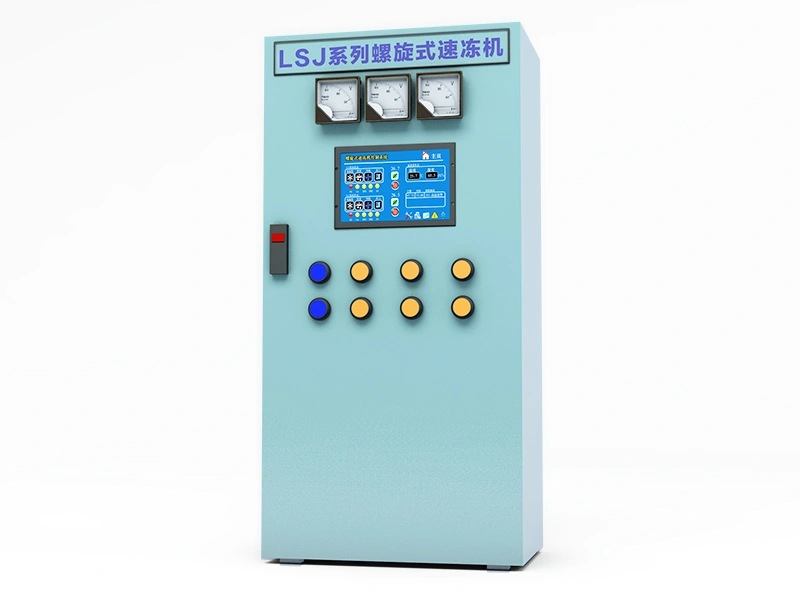

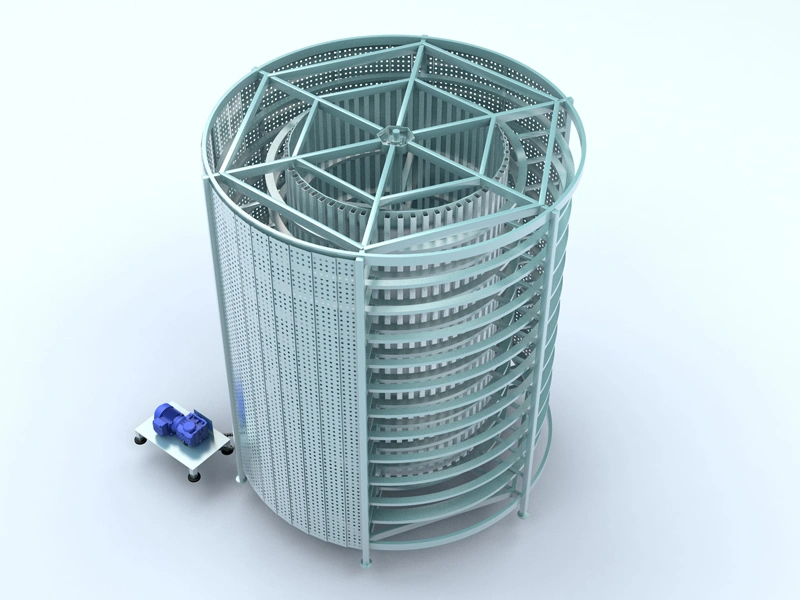

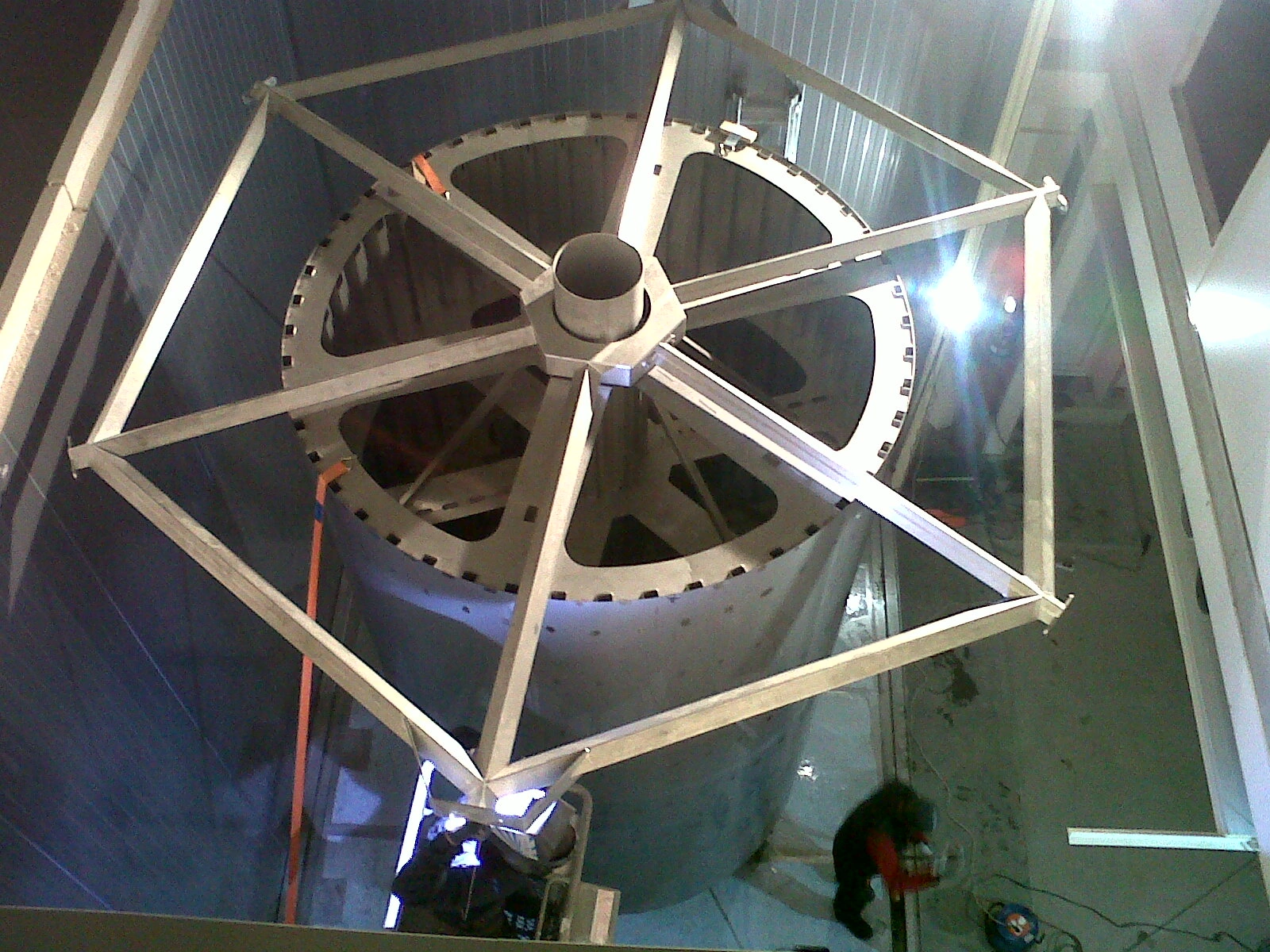

Freezer Frame	Electric Cabinet
The frame is made of stainless steel, the drum, frame, air duct etc. adopts square tubes of 60×60mm, 60×30mm, 40×40mm, 25×25mm, and flat steel of 35×5mm. The frame is welded by stainless steel plate. There are bearing support positioning for the turret. The parts in direct contact with the belt adopts ultra high molecular polyethylene material. Automatic tightening regulation of net belt controlled by independent frequency converter. Equip with net belt roll-over alarm device, emergency stop when encounter belt roll-over problem. The drive shaft and sprocket are made of food grade stainless steel material, and the mesh belt supporting wheel is nylon material.	Vertical cabinet structure, the shell is made of stainless steel. Electrical components: the electrical components are Schneider or CHNT. PLC and touch screen are Siemens.The meters, inverter and proximity switch for detection are from Omron. Temperature display: multi-point display (inlet, outlet and center of library each has 1 set). The storeroom is equipped with a water-proof safety lamp lighting system, and the lighting is 36V safe voltage. The anti-freeze device system of the storage door, with 36V safe voltage.

Features

1. The IQF Spiral Freezer utilizes a compact, multi-layer spiral structure, reducing its footprint by 1/3 to 1/2 compared to conventional freezers of the same capacity, making it ideal for facilities focused on space efficiency.

2. LSJ IQF Spiral Freezers incorporate years of practical experience and cutting-edge international technology, offering unparalleled reliability. Robust mechanical and electrical safety features ensure worry-free operation even in demanding industrial environments.

3. This freezer features customizable inlet and outlet directions, easily adapting to various food production layouts. Whether used with frying lines, packaging systems, or processing units, it streamlines workflows and increases productivity.

4. The Spiral IQF Freezer’s streamlined design requires virtually no training to operate. Key highlights include an aluminum alloy evaporator with easy-to-clean fins to reduce bacterial growth and a high-speed cleaning system for instant conveyor belt drying, ensuring stringent hygiene standards. Furthermore, its durable design reduces the number of replaceable parts, reducing maintenance costs.

5. This versatile unit is suitable for a wide range of frozen foods, processing everything from noodles, spring rolls, and meat products to fruits, vegetables, fried snacks, and packaged foods, making it a versatile solution for food processors.

6. Constructed of high-quality SUS304 stainless steel, the freezer ensures that products are placed directly onto the conveyor. The smooth conveyor surface virtually leaves no marks on items, while side chains with non-slip stops keep trays securely in place, minimizing product waste.

7. To optimize performance, symmetrical circular air ducts are designed around the spiral tower and evaporator. This innovative design not only accelerates heat exchange but also prevents cooling loss at the entry and exit points. Most importantly, it maintains operator-friendly operation and easy maintenance.
