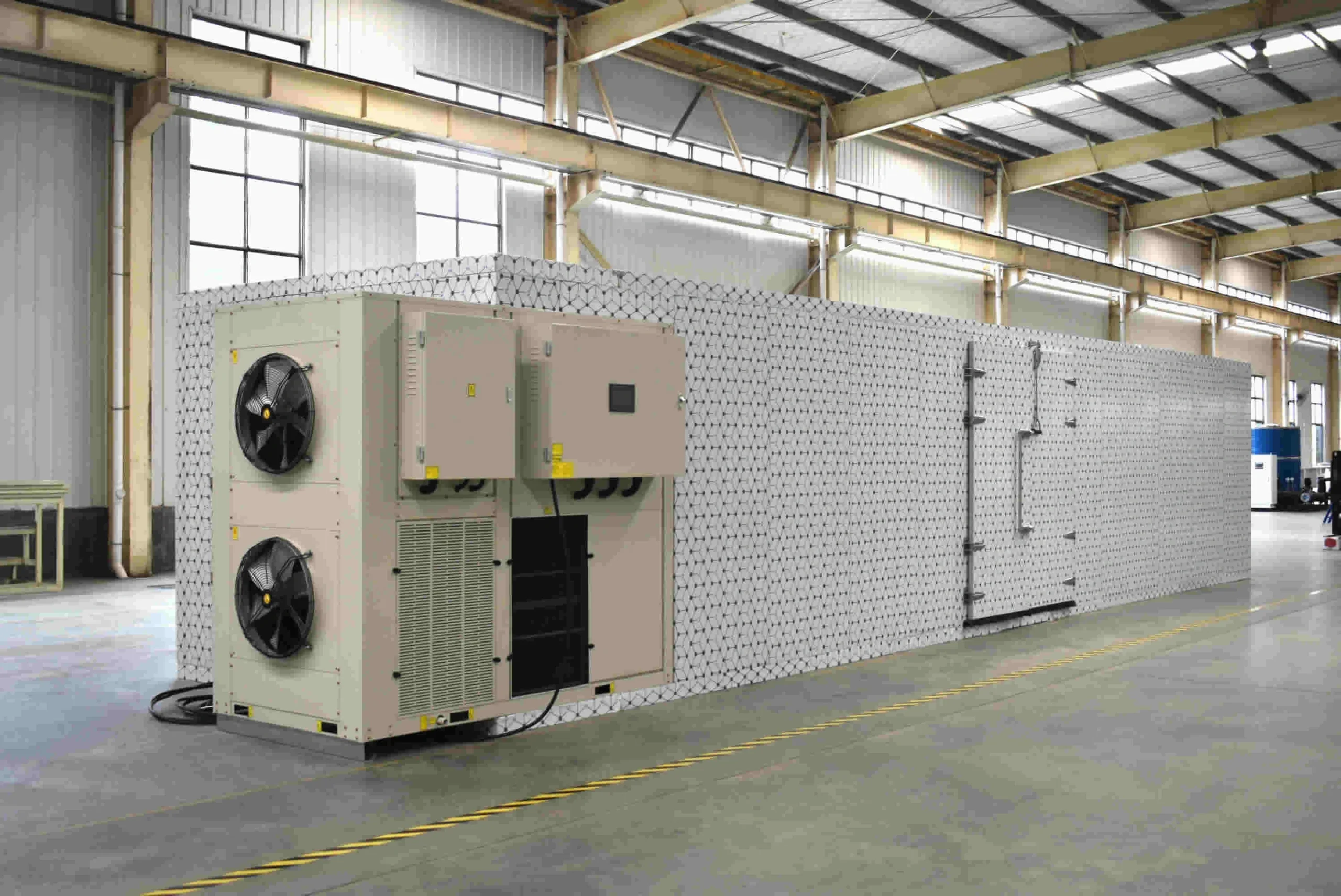

Heat Pump Dryer Room

Heat pump dryers are currently the preferred equipment for fish drying in the food processing industry. Hot air drying not only preserves food’s original quality but also makes it easier to package, store, and transport. Our company, closely aligned with international food processing needs, has fully absorbed advanced equipment and technologies from abroad to develop a brand-new concept of cold air drying equipment. Its performance reaches leading international standards, offering a new generation of innovative drying equipment for the food drying industry.

PRODUCT DETAILS

FEATURES

1. Integrated unit design delivers high efficiency and precision, with all operations controlled by automated instruments.

2. Highly efficient temperature control system, operating noise level less than 70dB.

3. Utilization of a heat pump significantly reduces operating costs, eliminating the need for heating equipment.

4. Low operating temperature effectively preserves the color, aroma, flavor, shape, and effective nutrients of dried products.

5. Extremely convenient operation: Even complex processing steps can be completed with just one click.

6. Suitable products: Aquatic products, fish, sea cucumbers, shrimp, shellfish, poultry and livestock products, etc.

PRINCIPLES

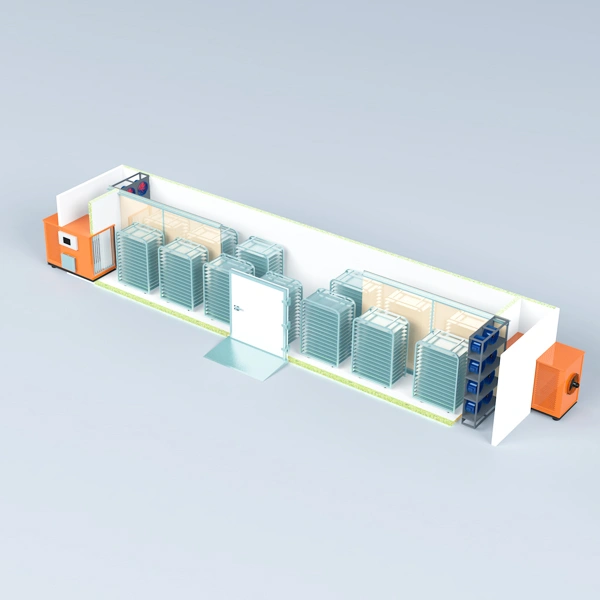

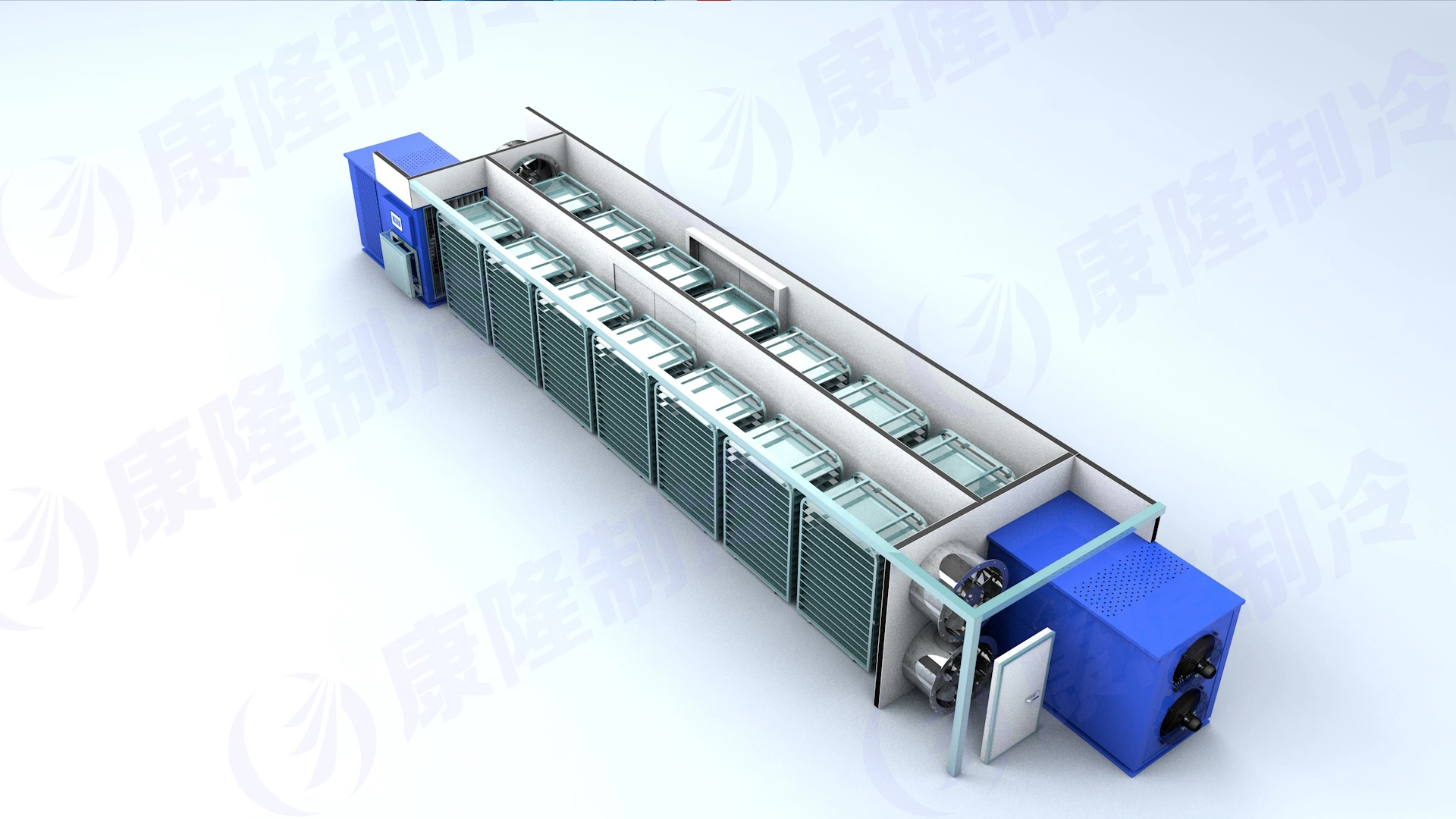

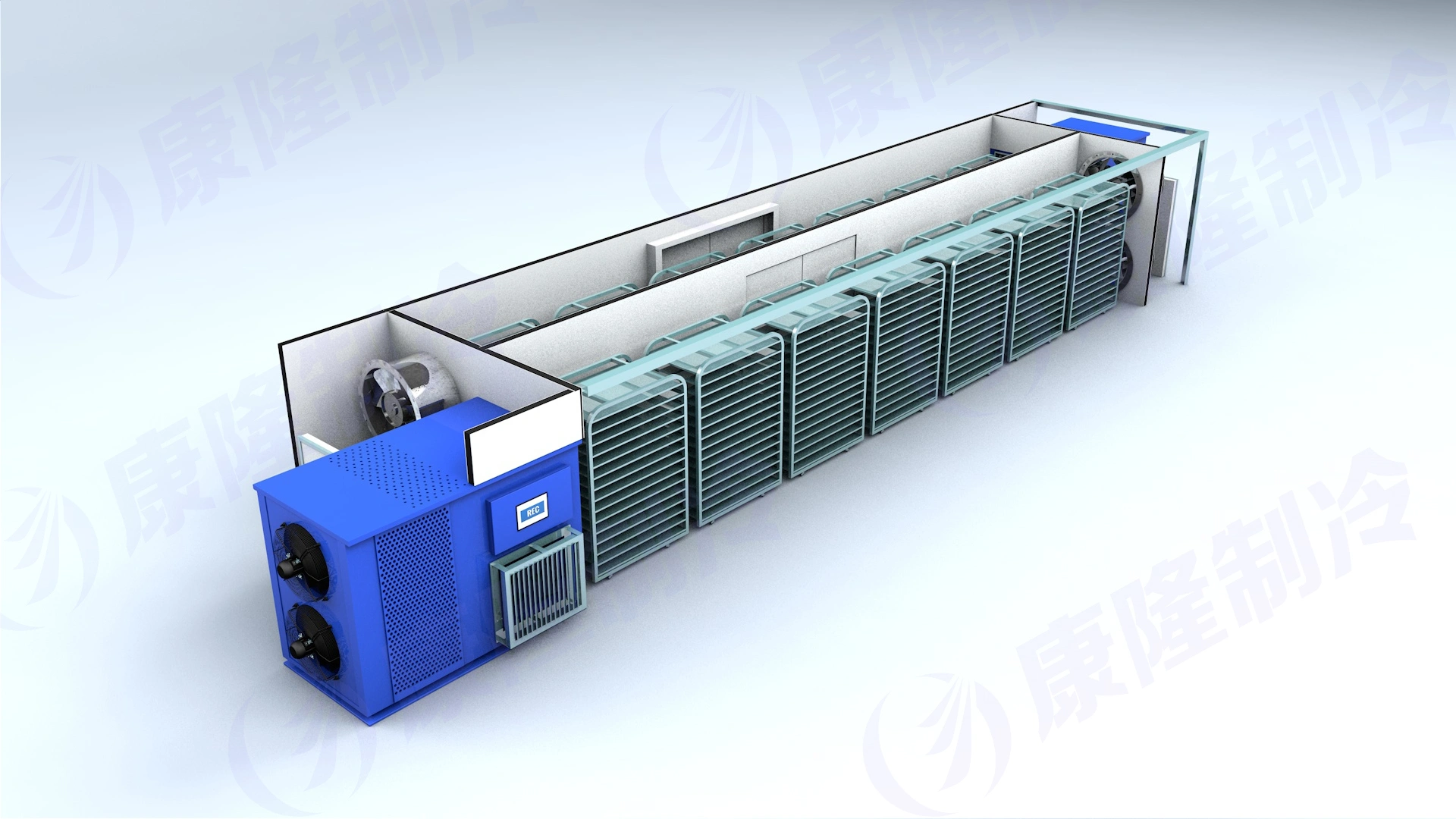

This heat pump dryer consists of an evaporator, condenser, compressor, multiple fans, an insulated housing, and supporting systems. It uses alternating hot and cold air to alternately heat and cool items within a separate chamber, achieving rapid, natural drying. The temperature within this chamber can be adjusted between 15°C and 35°C, depending on the product’s requirements.

The heat pump dryer operates by exchanging heat between dry air and fresh product during processing. Once the product is dried to a certain degree, it is purged with hot dry air. The cooled product absorbs the heat, and any remaining moisture evaporates, achieving thorough drying.

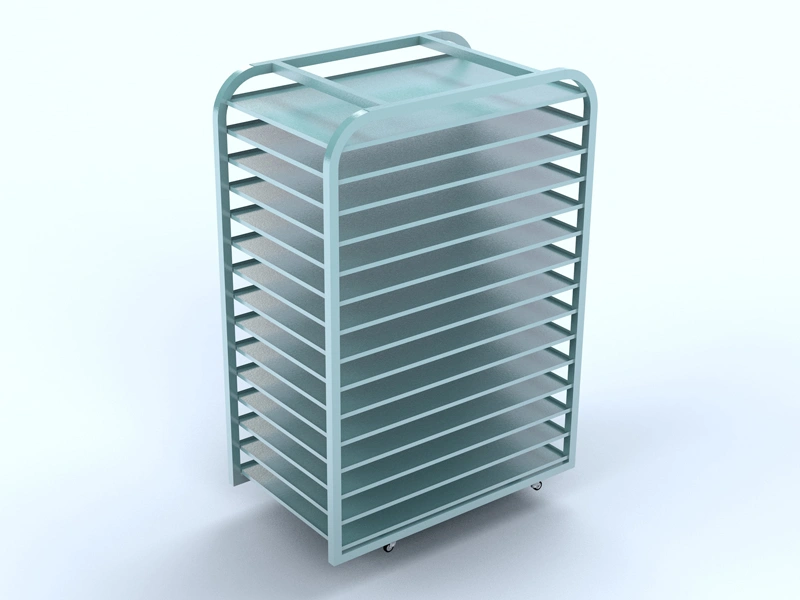

Model	Drying Temperature(℃)	Installed Power(Kw)	Quantity Of Trolly(Set)	Capacity(Kg)	Overall Dimensions L×W×H（mm）	Power(V)
KYF-45	15-35	10	4	450	3500×3400×2780	AC220
KYF-65	15-35	14	6	650	4300×3400×2780	AC380/220
KYF-90	15-35	16	8	920	5100×3400×2780	AC380/220
KYF-110	15-35	22	10	1100	6200×3400×2780	AC380/220

	HS-II-1.6-I Feed Section	HS-II-1.6-II Mid Section	HS-II-1.6-III Discharge Section	HS-II-2-I Feed Section	HS-II-2-II Mid Section	HS-II-2-III Discharge Section
Width Of Belt	1.6	1.6	1.6	2	2	2
Length Of Drying Section(m)	10	10	10	10	10	8
Thickness Of Material To Be Covered(mm)	≤100	≤100	≤100	≤100	≤100	≤100
Temperatuer(℃)	50-150	50-150	50-150	50-150	50-150	50-150
Heat Exchange Area(㎡)	525	398	262.5	656	497	327.5
Steam Pressure(Mpa)	0.2-0.8	0.2-0.8	0.2-0.8	0.2-0.8	0.2-0.8	0.2-0.8
Drying Time(H)	0.2-1.2	0.2-1.2	0.2-1.2	0.2-1.2	0.2-1.2	0.2-1.2
Power(Kw)	0.75	0.75	0.75	0.75	0.75	0.75
Overall Dimensions(m)	12×1.8×1.9	12×1.8×1.9	12×1.8×1.9	12×2.4×1.92	12×2.4×1.92	12×2.4×1.92
